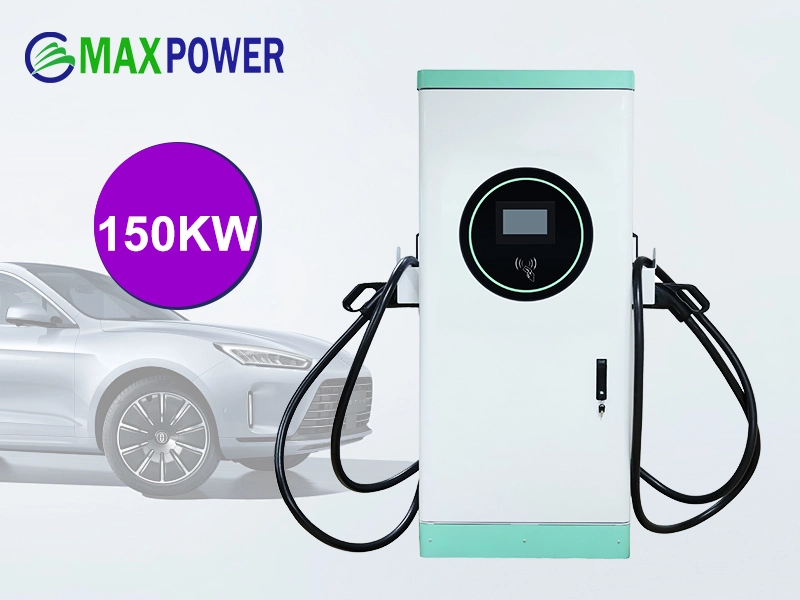

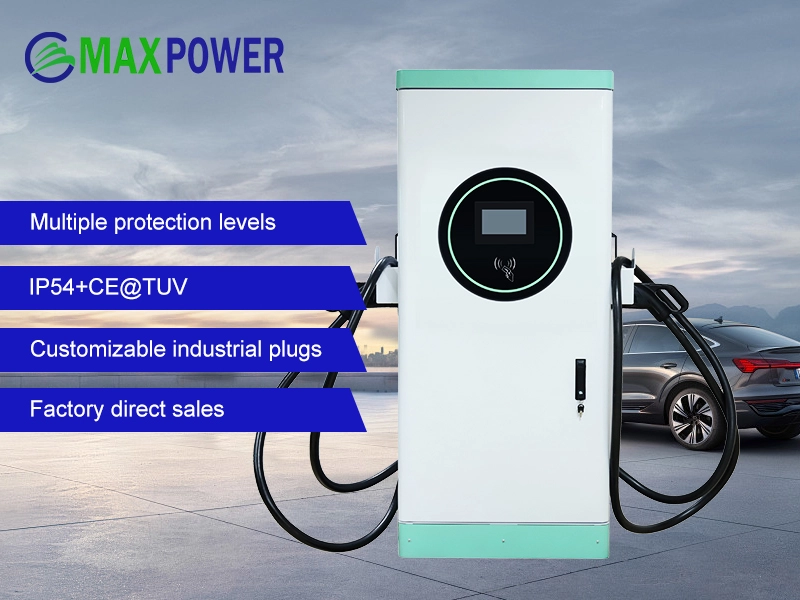

Floor-Mounted HC150kW Fast EV Charger

Model No.: HC150750/HC1501k

HC150KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.


The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.


Contact Us
Floor-Mounted HC150kW Fast EV Charger
Floor-Mounted HC150kW Fast EV Charger
Floor-Mounted HC150kW Fast EV Charger
Floor-Mounted HC150kW Fast EV Charger
Floor-Mounted HC150kW Fast EV Charger
Floor-Mounted HC150kW Fast EV Charger

General Specifications:


Start Mode:  Plug and Charge, RFID, Password charge,TUYA APP,4G,WIFI,LAN,Ocpp1.6J

Charging Standard: EN61851、EN62196、ISO15118、DIN70121、CHAdeMO

Temperature Range: -20~50℃;25℃(type)

7” colored touch screen display;

Low Standby power consumption﹤10W;

Protection level: IP54

Input Voltage Range: 380Vac ± 15%;380Vac(rated) 440V, 480v Optional

Working Frequency: 45-65HZ

Output Power: 150kW

Output DC Voltage Range: 200-1000Vdc

Multi-language interface ( Chinese, English, German, French, Russian, etc)

OEM+ODM Welcome

Charging Standard: CCS1 / CCS2 / CHAdeMO / GBT

Multi Standard Optional support:One machine Support  GB/T CCS2,CCS1,CHAdeMO standard

Double(CCS1+CCS1)

Double (CCS1+CHADEMO)

Double(CCS2+GBT)

Double(CHADEMO+CHADEMO)

Double(CCS2+CCS2)

Double (CCS2+CHADEMO)

Double(CHADEMO+GBT)

Double(CCS1+CCS2)

Double(CCS1+GBT)

Double(GBT+GBT)



Product advantages


High Reliability

High reliability and low failure rate withlow operation and maintenance costs.Always available easy to use and profitable.



High Efficiency

Efficient and power saving. Low heat loss and heat dissipation.Low overall power consumption and operating costs



 High Safety

Dual protection.Active protective function.No fire or electric shock risk.Safety of network and supply.



Fast charging

Constant power output at different voltage and temperatures Fast charging capability in all scenarios,Dispatching power according to different demand



Intelligent

Intelligently connect multiple operating devices with information-based remote operation management.



Environment friendly

Low noise and easy to use Environment friendly.



Open Charge Point Protocol (OCPP)
Allow EV charging stations and central management systems from different vendors to communicate with each other.

Dynamic Load Balancing (DLB)
Consumes the house’s power supply efficiently without costly upgrades to your building’s grid connection.

Customize All Types of Connectors
Compatible with all electrical cars manufactured in the world.



Security Design


Over/Under Voltage Protection,Overlord Protection,Current Leakage Protection,

Grounding Protection,Over Temp Protection,Lightening Surge Protection
