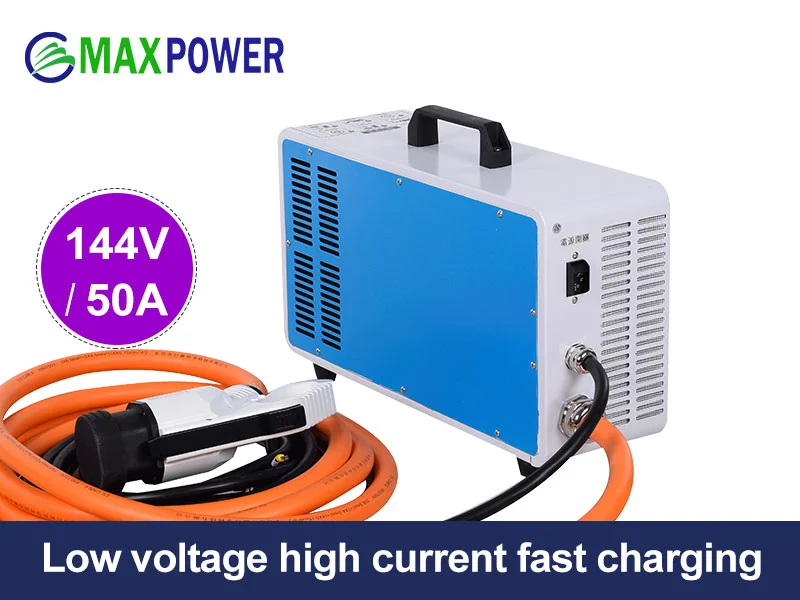

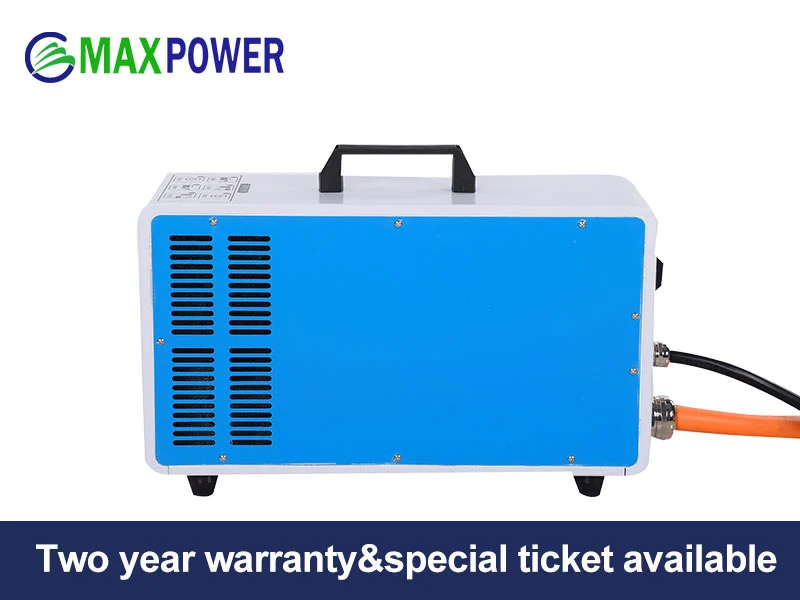

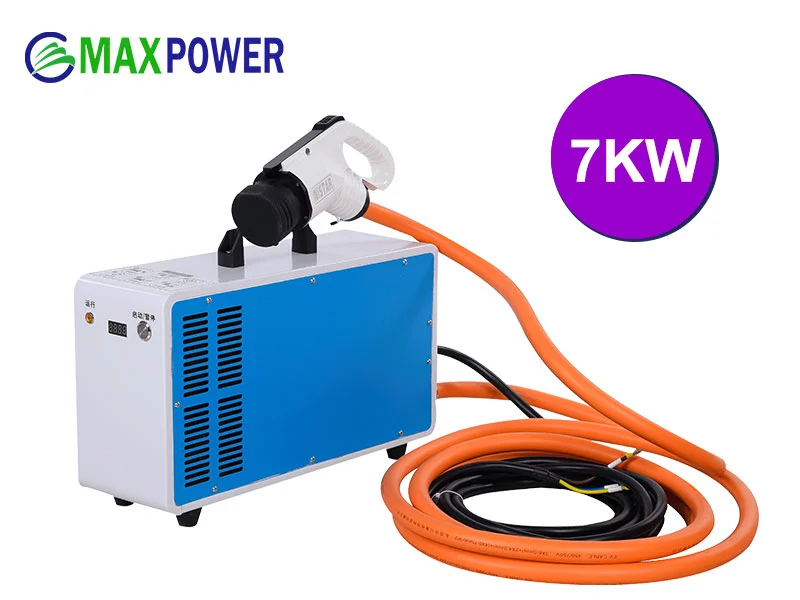

Mobile 7kW DC Fast Charger

Name: Mobile 7kW DC Fast Charger
Brand: Guangzhou Max Power New Energy Technology Co., Ltd.

Model no.: MC07750

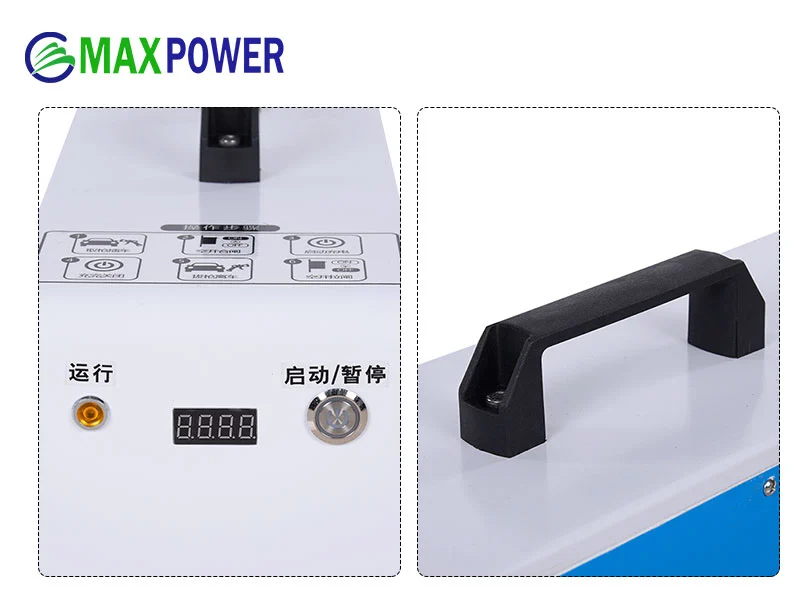

Features: Digital tube display; single portable handle; robust caster wheels with fixed-position brake; Indicator lights; 3M charging cable

MC07750EAJ_Product Specification

General Specifications

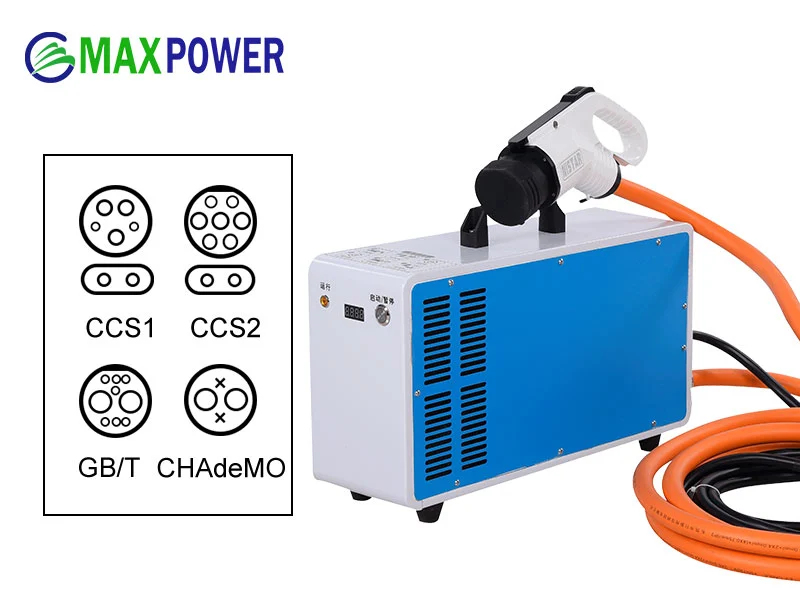

Charging Standard	CCS1 / CCS2 / CHAdeMO / GBT
Start Mode	plug and charge
Networking protocol	(not applicable)
Charging Mode	plug and charge
Charging Standard	EN61851、EN62196、ISO15118、DIN70121、CHAdeMO
Temperature Range	-20~+50℃
Machine Dimensions	450150310mm
Input Voltage Range	90Vac--265Vac
Frequency	50/60Hz
Input Current Range	32A
Input Cable Length	5M
Output Power	7kW
Output DC Voltage Range	200-750Vdc
Output DC Current	20A
Gun Cable Length	3M

Overview

Our mobile DC chargers feature a compact size and portable design. Units weigh anywhere from 20-60kgs. All chargers have wheels and handles built-in for portability. Small footprint and transportable form factor allows chargers to be easily moved by hand.

Equipped with Ethernet, Wi-Fi, and 4G LTE connectivity options, with in-built OCPP support, this DC EV charger allows easy integration and management by any charging station operators.

The high-quality 4.3" touch screen display provides real-time information, making it user-friendly and easy to operate. Available for customization based on operators’ requests.

This mobile DC fast chargers are ideal for various applications and enable fleet operators, auto dealers, even planners and other businesses. In environments with a high number of EVs bringing the charger to the vehicle can save and incredible amount of time compared to moving cars around to accommodate a stationary charger.

Safety is a top priority for DC mobile EV chargers. Our product units include features like automatic shutdown on cable disconnect, over current protection, ground fault circuit interrupters, and surge protection.
