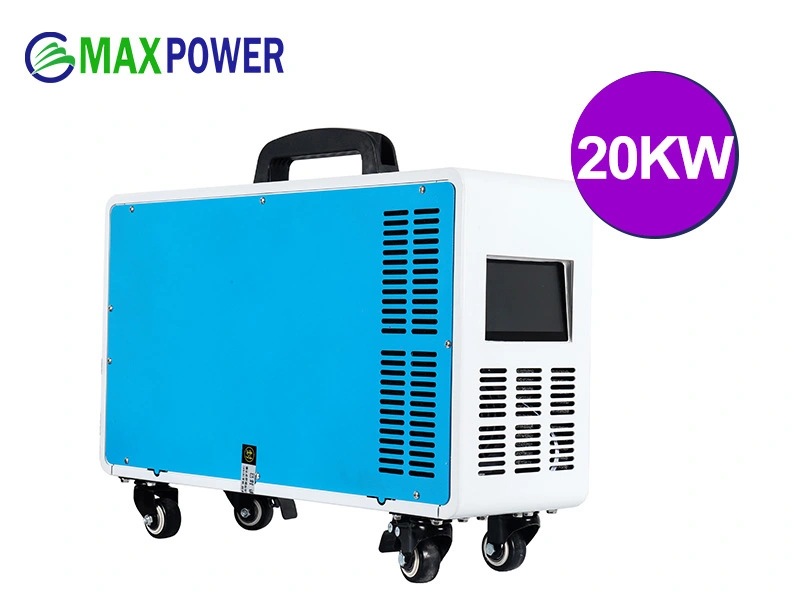

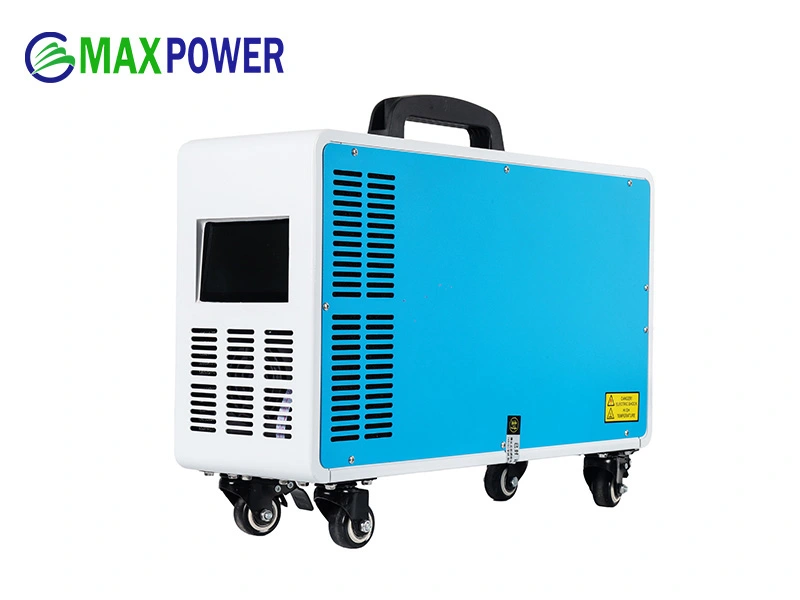

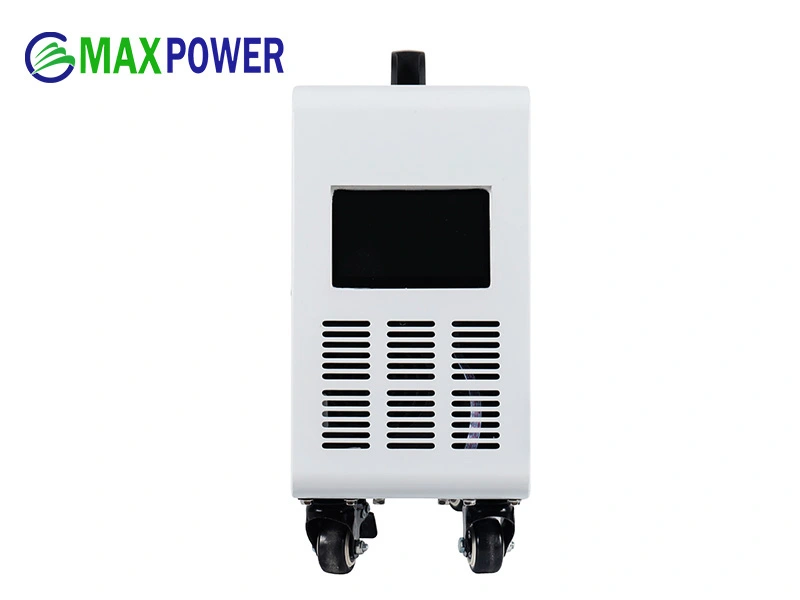

Portable 20kW DC EV Fast Charger

Model no.: MC20750

Features: The outlet adopts direct air duct + fan, with minimum wind resistance and strong air air output; fixed time charging available; voice navigation / digital tube display; single portable handle; robust caster wheels with fixed-position brake; anti-collision class > IK8.

Contact Us
dc electric charger
dc ev charger
movable ev charger
mobile ev charging station
mobile electric car charger
dc electric charger

General Specifications


Charging Standard

CCS1 / CCS2 / CHAdeMO / GBT

Start Mode

plug and charge

Networking protocol

(not applicable)

Charging Mode

plug and charge / fixed time charging

Charging Standard

EN61851、EN62196、ISO15118、DIN70121、CHAdeMO

Temperature Range

-20~+50℃

Machine Dimensions

490*386*158mm

Input Voltage Range

260Vac--475Vac

Frequency

50/60Hz

Input Current Range

32A

Input Cable Length

5M

Output Power

20kW

Output DC Voltage Range

200-750Vdc

Output DC Current

33A/50A

Gun Cable Length

3M




Overview


Flexibility: As urbanization progresses, parking space for vehicles is often limited. Mobile charging piles can charge new energy vehicles anytime and anywhere without the need to open a fixed charging area, making charging more convenient and flexible. In addition, mobile charging piles can also adjust their positions as needed to meet charging needs in different locations, such as residential areas, shopping malls, parks, etc.

Diversity: Mobile charging piles have greater flexibility in design and can be customized according to different scenarios and needs. For example, it can be set up in public places, scenic spots, highways and other places to meet the needs of different types of vehicles and users. This diversity is not only conducive to market expansion, but also improves user satisfaction.
