Floor-Mounted 40KW DC EV Fast Charging Station

Model No.: VC40750

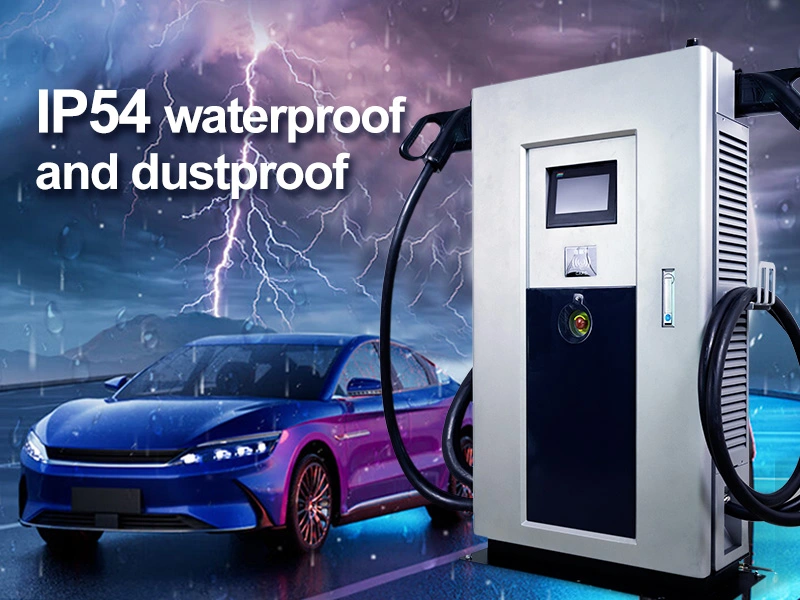

Features: 7" colored touch screen display; Low Standby power consumption﹤10W; Wide Output Voltage range, 200V-750V; Protection level: IP54; Multi-language interface ( Chinese, English, German, French, Russian, etc); OEM+ODM support

Contact Us
dc charging for electric vehicles
dc charging of electric vehicles
dc charging station at home
dc quick charging stations
ev dc fast charging stations
dc charging for electric vehicles

General Specifications


Charging StandardCCS1 / CCS2 / CHAdeMO / GBT
Start ModeSwipe card, APP, Manual
Charging ModeRFID CARD/OCPP1.6J (WIFI, 4G, LAN)
Charging StandardEN61851, EN62196, ISO15118, DIN70121, CHAdeMO
Temperature Range-20~50℃; 25℃ (type)
Machine Dimensions1350*690*240mm (Excluding the gun)
Input Voltage Range380Vac ± 15%; 380Vac(rated)
Working Frequency45-65HZ
Input Current Range0-64A
Input Cable Length5M
Output Power40kW
Output DC Voltage Range200-1000Vdc
Output DC Current0-120A



Overview

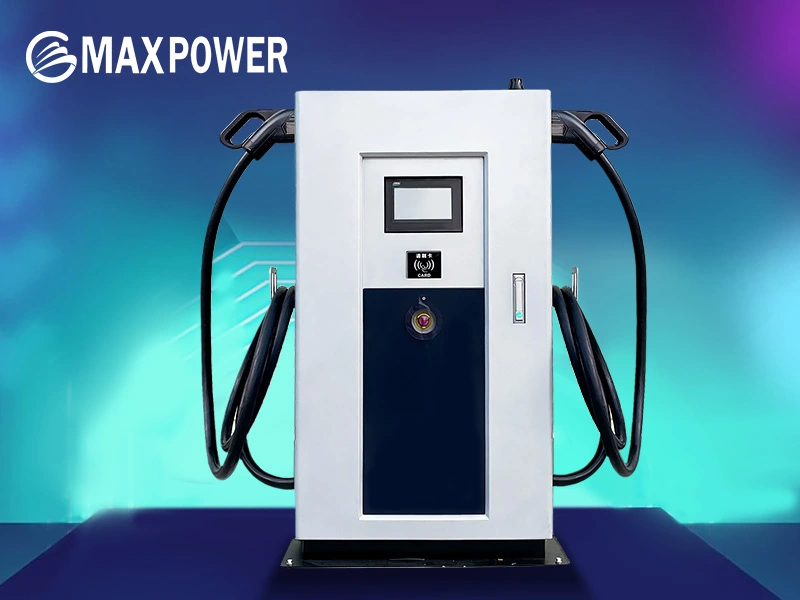

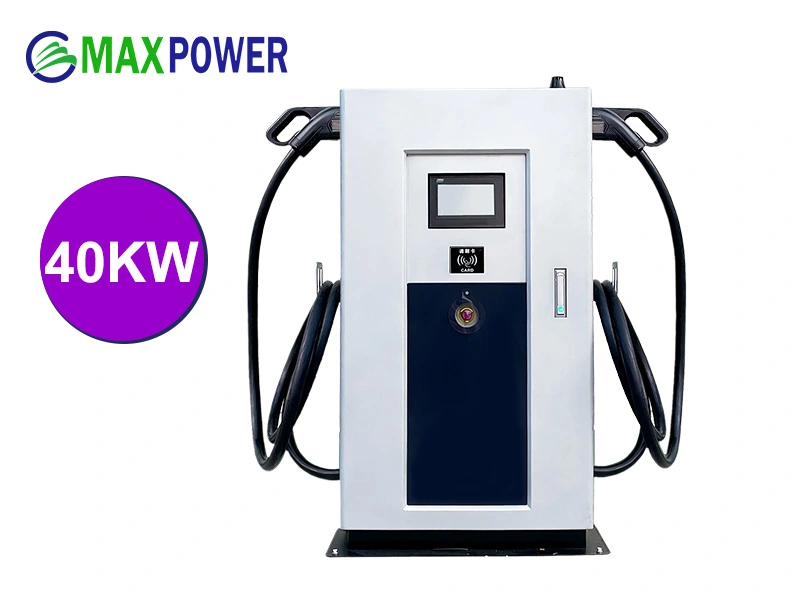

Floor-Mounted 40kW DC EV Fast, dual-gun charging station. This sleek and compact charger is perfect for various installation settings, offering a powerful 40kW output that ensures fast and efficient charging for electric vehicles (EVs).

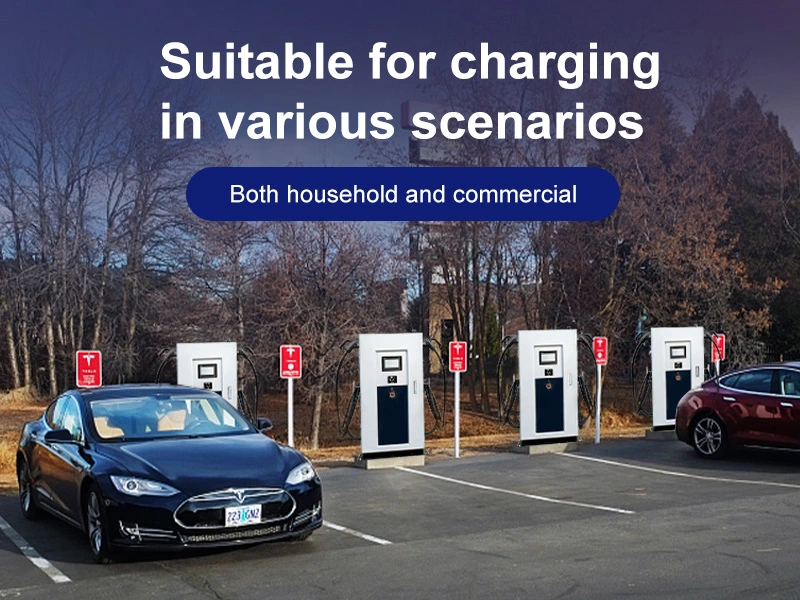

Featuring a fashionable gray exterior, the Floor-Mounted 40kW DC EV Fast charger blends seamlessly with any environment. Its slender body and small footprint make it versatile and suitable for a wide range of locations, including residential areas, commercial complexes, and public charging stations.


To ensure optimal performance, this charging station incorporates a well-designed air duct system, effectively minimizing the temperature difference between the intake and exhaust, keeping it below 3 degrees. Safety is paramount, which is why our charger comes equipped with an emergency stop button, providing enhanced security and reliability during usage.


The dual-gun feature enables simultaneous charging and allows for the convenient combination of different gun types, including GB/T, CCS1, CCS2, and ChadeMo. Whether you own a Tesla or another electric vehicle, this charging station has you covered.


In addition to its versatility, this charging station supports RFID card and is compatible with commercial usage. It seamlessly integrates with service platforms through the OCPP1.6J protocol, ensuring seamless connectivity and convenient billing processes. Its user-friendly interface offers an intuitive and hassle-free charging experience, allowing you to charge your EV with ease.


Using The Floor-Mounted 40kW DC EV Fast charging station and enjoy the freedom of uninterrupted charging. Experience superior speed, safety, and convenience with our state-of-the-art charger. Take the next step towards a greener future and make your daily commute hassle-free with this high-performance charging solution.
