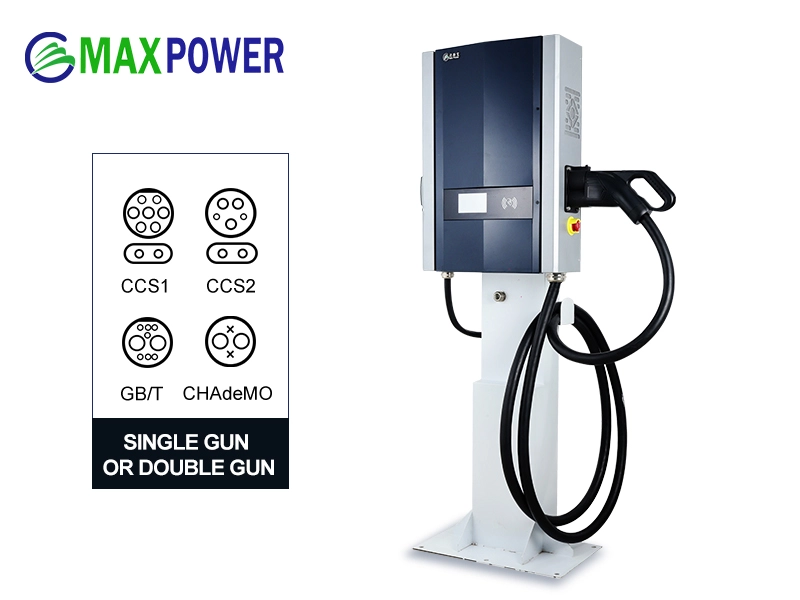

Specification of SC30kw


Model

SC30750

SC301K

INPUT

Voltage range

260-475Vac, 380V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

60A

Auxiliary source

GB/T: 12V 24V OPT   CCS CHAdeMO: 12V

OUTPUT

Power

30KW

Voltage range

200-750Vdc

200-1000Vdc

Output current

0-100A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃; 25℃ (type)

Humidity range

5~90RH%;  (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%; 25RH%(type); (non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

642*454*153mm

Packing size(mm)

Carton: 790*610*380mm    Wooden box: 790*610*470mm

Carton packing/weight

Carton weight 61kg, wooden case weight 69kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

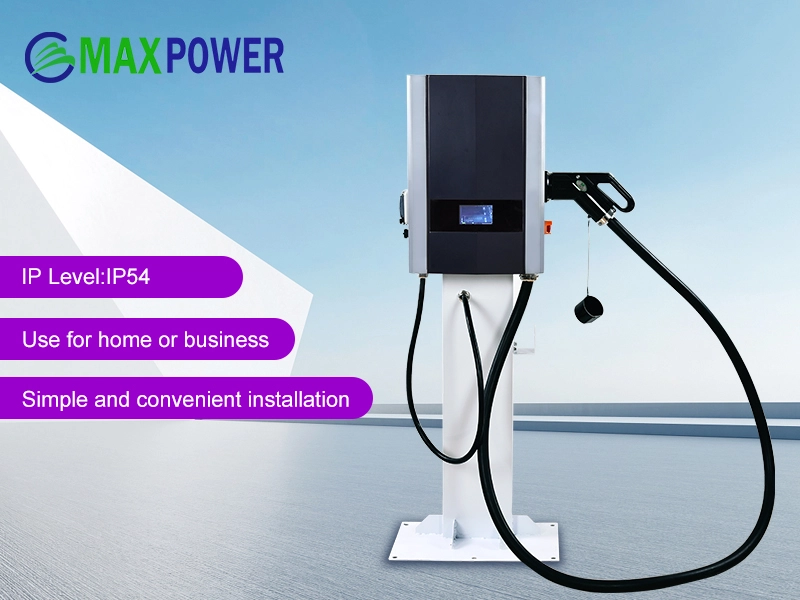

IP

IP54

OTHER

The human-computer interaction

4.3 "color touch screen

Charging mode

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

Charger standard

GB/T:GB/T 18487, GB/T 20234, GB/T 27930

CCS:EN61851, EN62196, ISO15118, DIN70121

CHAdeMO: CHAdeMO



Max Power newly-launched 40kW Wallbox DC Quick EV Charger aims to improve convenience to EV drivers. The fast charger features an SAE combo charge connector.



Beside its fast charging features (the 24kWh battery of a Nissan Leaf can be recharged from 0% to 80% in approx. 40 minutes), the system offers a pluggable modular power system architecture for a meaningful reduction in installation and maintenance costs.



Max Power EV Charging Solutions feature RFID and mobile app user access, which make these EV chargers ideal for various commercial applications like EV parking, fleet charging and also residential.
