DC Fast Charger
Portable EV Charger with Interchangeable Cables
Plug and play
Flexible Control
Flexible Access
Waterproof
Safety Protection
Swappable Connectors
The All-in-One Portable EV Charging Station | Multi-Standard Support
Max Power’s XC Series is the world’s most flexible portable EV charger. Its unique interchangeable cable system lets you switch between CCS, CHAdeMO, GB/T, and NACS. A true universal mobile DC fast charger for any electric vehicle.

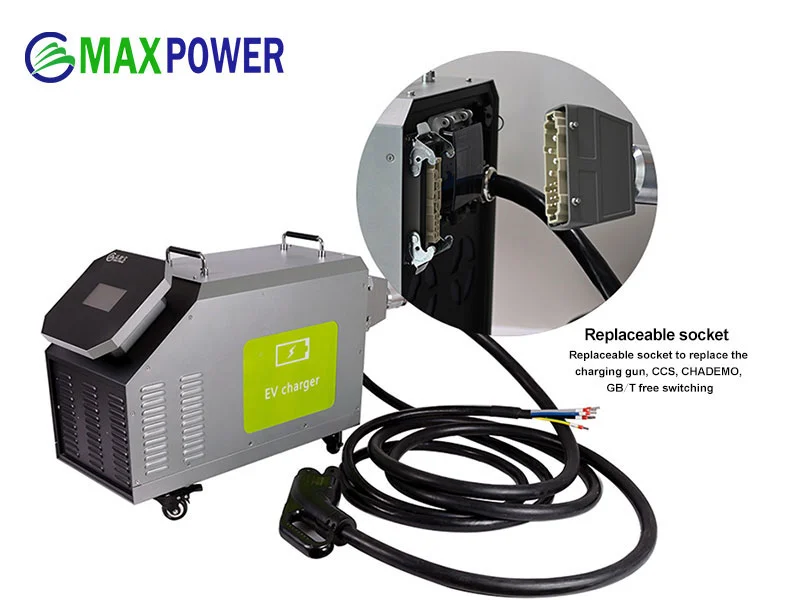

Interchangeable Cable System
The XC Series features a groundbreaking detachable and interchangeable charge gun system.
Swap Standards in Seconds
Easily switch between CCS1, CCS2, CHAdeMO, GB/T, and NACS plugs. One charger is all you need to run a global or mixed fleet.
Customize Cable Lengths
Order custom-length cables for specific setups—from tight parking spots to large vehicle bays. Maximize convenience and simplify storage.
Future-Proof Your Investment
As new charging standards emerge, simply acquire a new cable gun instead of a whole new charger.
Reduce Downtime & Cost
If a cable is damaged, replace just the cable, not the entire unit. This minimizes repair costs and operational interruptions.
True Portability for On-the-Go Power
Engineered for mobility, this portable DC charger for EV is compact, robust, and ready for action. Perfect for:
- Roadside Assistance & Emergency Services
- Remote Work Sites & Off-Grid Locations
- Fleet Management & Temporary Events
- Energy Storage System IntegrationIts
Its IP43 rating ensures reliable operation in various outdoor conditions.
Powerful & Smart Charging
Deliver high-power charging from 7kW to 40kW to get vehicles back on the road fast. The intuitive 4.3-inch touchscreen and cloud connectivity (4G/Wi-Fi, OCPP 1.6) allow for remote monitoring, dynamic load balancing, and seamless network integration.
| Product Parameters | |||||
|---|---|---|---|---|---|
| Product Model | XC07750 | XC201K | XC301K | XC401K | |
| Rating | 7KW | 20KW | 30KW | 40KW | |
| Output voltage | 200-750V | 200-1000V | |||
| Input voltage | 90-265V | 260-475V | |||
| Input Current | 32A | 30A | 45A | 64A | |
| Output Current | 20A | 50A | 100A | 120A | |
| Input wiring | L+N+PE | 3P+N+PE | |||
| Frequency | 50-60HZ | ||||
| Power factor | >99%(Rated voltage & full power) | ||||
| Work efficiency | 95% | ||||
| User interface | 4.3-inch touch Display | ||||
| Sizes (mm) | 635*295*500 | ||||
| Weights | 20KG | 40KG | 50KG | 60KG | |
| Ancillary sources | 12V(24V Optional) | ||||
| Operating temperature | -25℃-+50℃（DeRating above 50℃, with heater for very cold areas） | ||||
| Height above sea level | 2000M | ||||
| IP Rating | IP43 | ||||
| crashworthiness Rating | IK8+ | ||||
| Input line length | 5M(Customization acceptable) | ||||
| Charge Gun Cable Length | 0M(Customization acceptable) | ||||
| Applicable standards | GB/T20234/EN62196/EN61851-23,JEVSG 105/CHAdeMO | ||||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | ||||
Please leave to us and we will be in touch within 24hours.
Frequently Asked Questions For Portable DC Charger
Where can I use the XC Series portable charger?
Thanks to its fully mobile and robust design, you can use the XC Series charger virtually anywhere. It’s perfect for roadside assistance, remote work sites, fleet parking, events, or as a temporary charging station. Its IP43 rating means it’s protected against water and dust, making it suitable for various outdoor conditions.
Which electric vehicles can it charge? Is it compatible with my car?
Yes, it likely is! A key feature of the XC Series is its universal compatibility. It freely switches between major global standards like CCS1,CCS2,GB/T, CHAdeMO, and NACS. This means it can charge a wide range of electric vehicles from different regions and manufacturers, all with a single machine.
How is it powered? What are the input requirements?
The XC Series is versatile. The 7kW model (XC07750) operates on a standard single-phase or wider range AC input (90-265V), making it very flexible. The higher-power models (20kW-40KW) require a three-phase AC input (260-475V). Please check your local power supply to choose the right model.
Can I change the charging cable length?
Absolutely. The product sheet specifies support for a detachable and customizable charge gun cable. This means you can order custom cable lengths to suit your specific needs, providing great flexibility for different parking and setup situations.

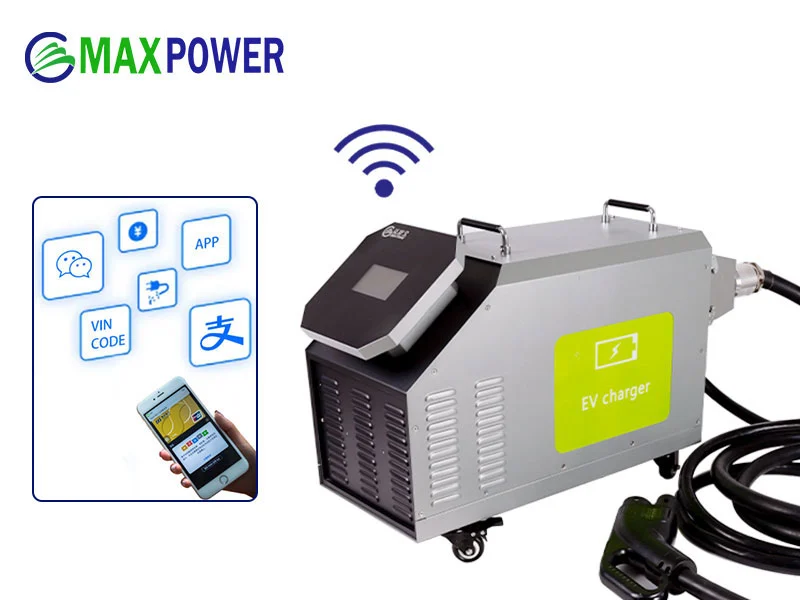

What smart features does it have?
The mobile dc charger is equipped with a 4.3-inch touch screen for easy operation. It supports OCPP 1.6 for integration with charging networks, and offers 4G, Wi-Fi, and Bluetooth connectivity for remote monitoring and management. Features like Dynamic Load Balancing (DLB) help optimize your site’s energy usage.
Can Max Power provide ODM and OEM services for custom charging stations?
Yes, absolutely. Max Power specializes in providing comprehensive ODM (Original Design Manufacturing) and OEM (Original Equipment Manufacturing) services to help businesses create customized charging solutions that meet their specific brand and market needs.
- ODM (Original Design Manufacturing) Service: With Max Power’s ODM service, you can design and develop a unique charging station from the ground up. Our expert team will work closely with you to bring your vision to life, ensuring the final product reflects your brand identity and technical requirements. We support you through the entire process—from initial concept and design, engineering, and prototyping to manufacturing and stringent quality control—delivering a charging station that is uniquely yours.
- OEM (Original Equipment Manufacturing) Service: If you already have a design or specific branding in mind, Max Power’s OEM service is the perfect solution. Simply provide us with your branding elements, such as logos, color schemes, and other visual assets, and we will incorporate them seamlessly into our high-quality charging station models. This allows you to offer a customized product quickly and efficiently, leveraging our manufacturing expertise without the need for extensive development.
By partnering with Max Power for ODM or OEM services, you can launch a branded EV charging station that enhances your business identity, promotes customer loyalty, and demonstrates your commitment to innovation and sustainability. Custom charging stations are ideal for commercial properties, retail locations, fleet operations, and more, helping you stand out in the growing electric vehicle market.
