Email Us

OC7KW

Max Power is a global company dedicated to changing the way the world uses energy. We create smart charging systems that combine cutting-edge technology with outstanding design, managing the communication between car and charger via easy-to-use apps(smart life or Tuya App)

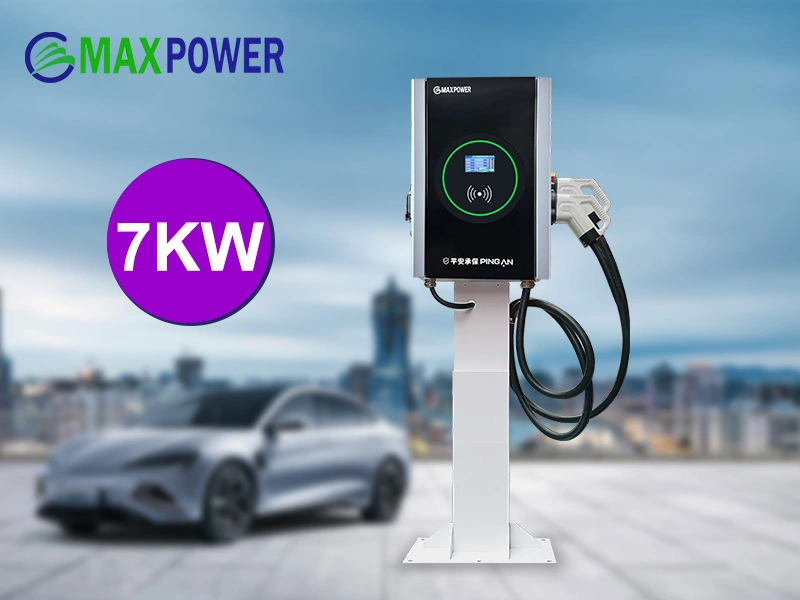

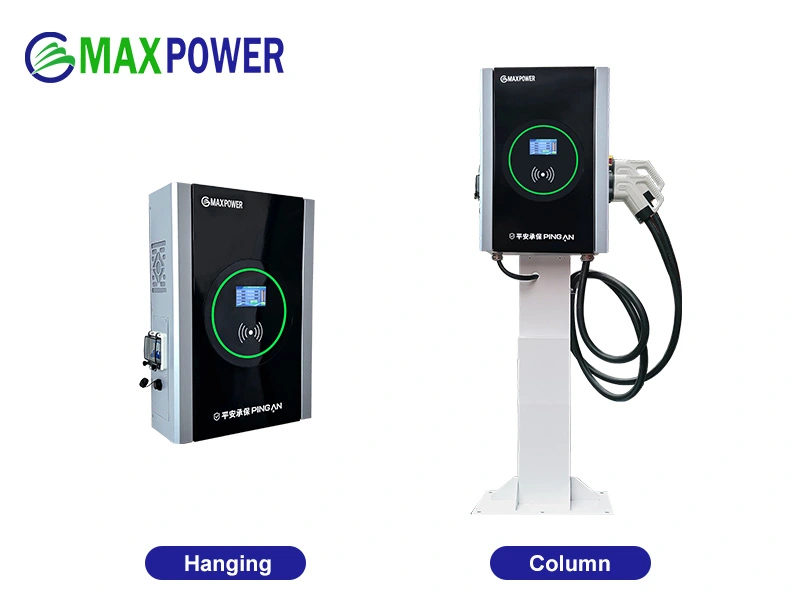

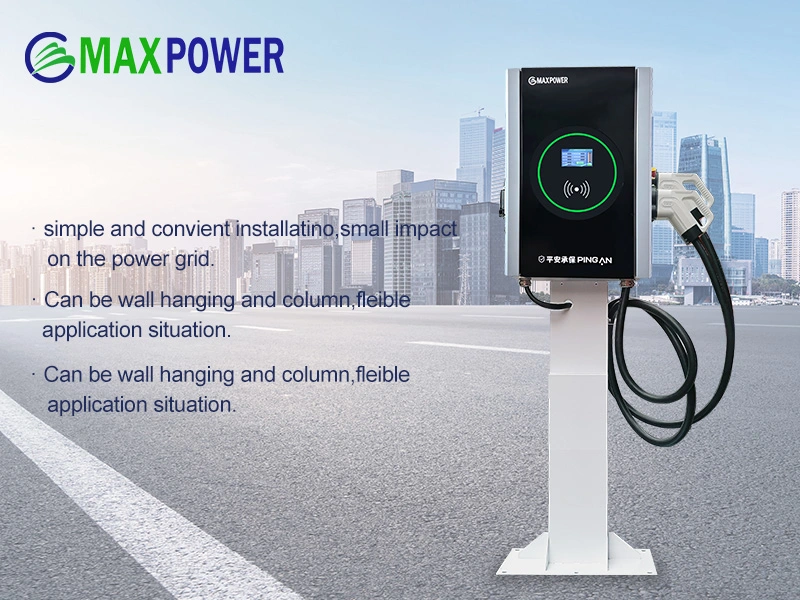

OC07750 is our newest smart home charger, designed to make everyday electric vehicle charging easier than ever. OC07750 retains the advanced performance  while introducing more ways to save, a new easy-to-install design and optional color design . OC07750 works seamlessly with all  Energy saving Solutions, including solar charging.

Contact Us
OC7KW
OC7KW
OC7KW
OC7KW
OC7KW
OC7KW

Specification of OC7KW


Model

OC07750

INPUT

Voltage range

90-265Vac,220V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

32A

Auxiliary source

GB/T:12V 24V OPT   CCS CHAdeMO:12V

OUTPUT

Power

7KW

Voltage range

200-750Vdc

Output current

0-20A

Charging plug cable length

5M

The work environment

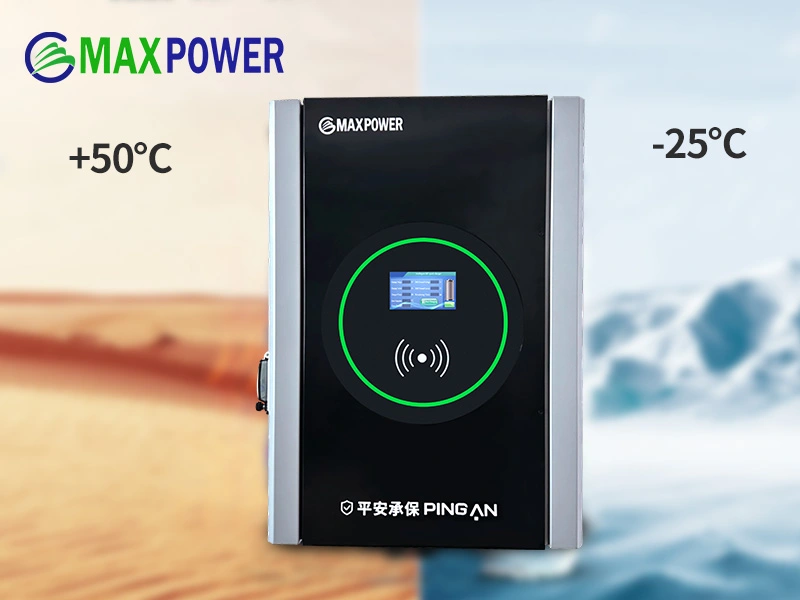

Temperature range

-20~50℃;25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%;25RH%(type);(non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

548*378*160mm

Packing size(mm)

Carton:790*610*380mm    Wooden box:790*610*470mm

Carton packing/weight

Carton weight 32kg, Wooden case weight 41kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

OTHER

The human-computer interaction

4.3 "color touch screen

Charging mode

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

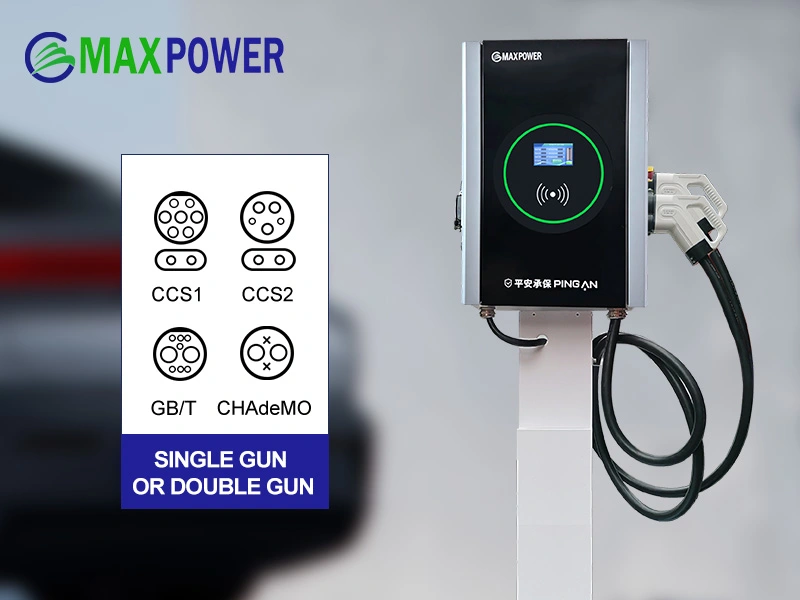

Charger standard

GB/T:GB/T 18487 、GB/T 20234、GB/T 27930

CCS:EN61851、EN62196、ISO15118、DIN70121

CHAdeMO:CHAdeMO
