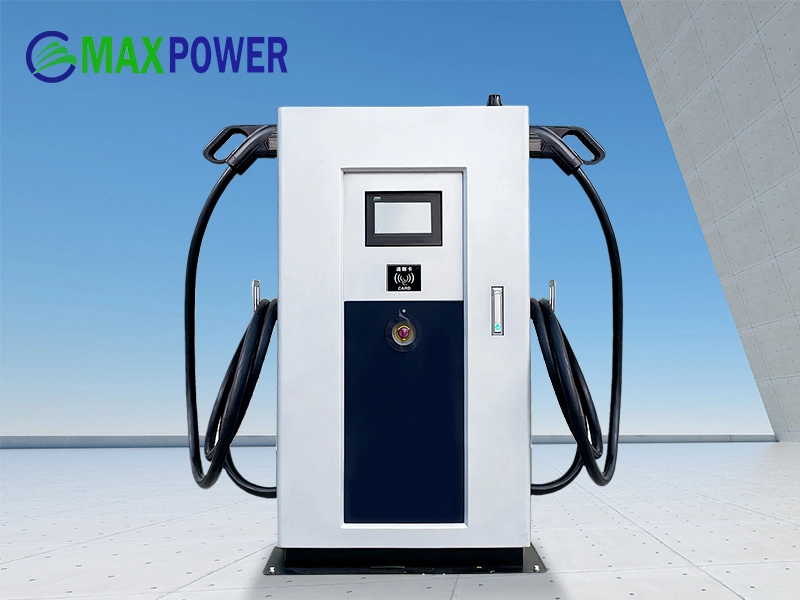

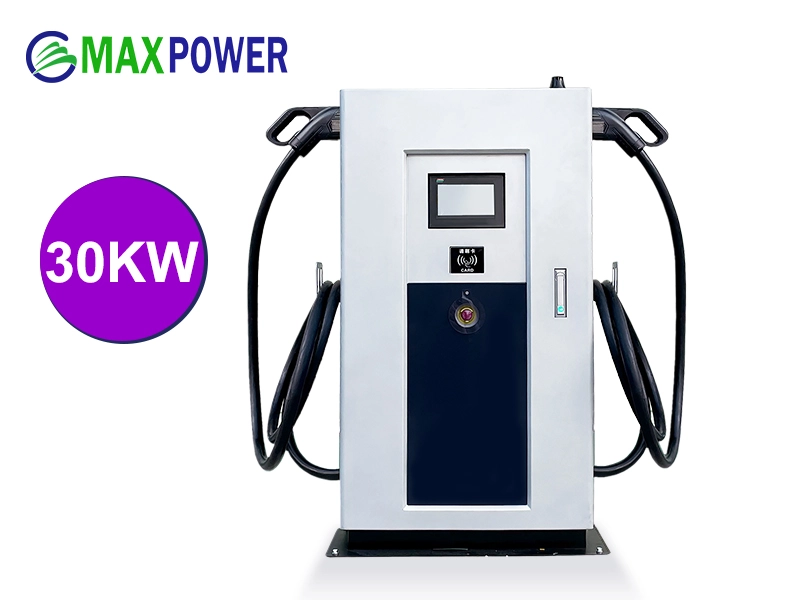

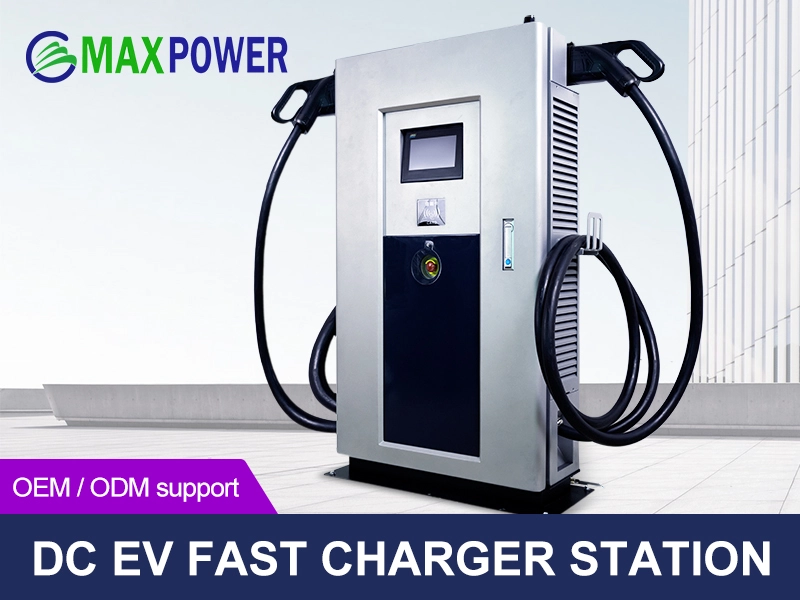

Floor-Mounted 30kW DC EV Dual-Port Charging Station

Model No.: VC30750/VC301K


Contact Us
30kw 1
30kw 3
30kw 2
30kw 4
30kw 5
30kw 1

Features:

-7” colored touch screen display;

-Low Standby power consumption﹤10W;

-Wide Output Voltage range, 200V-750V, 200V-1000V

-Protection level: IP54

-Multi-language interface ( Chinese, English, German, French, Russian, etc)

-OEM+ODM support



General Specifications:

Charging Standard: CCS1 / CCS2 / CHAdeMO / GBT

Start Mode: Swipe card, APP, Manual

Charging Mode: RFID CARD/OCPP1.6J(WIFI, 4G, LAN)

Charging Standard: EN61851、EN62196、ISO15118、DIN70121、CHAdeMO

Temperature Range: -20~50℃;25℃(type)

Machine Dimensions: 1350*690*240mm (Excluding the gun)



Parameter:

Input Voltage Range: 380Vac ± 15%;380Vac(rated)

Working Frequency: 45-65HZ

Input Current Range: 0-58A

Input Cable Length: 5M

Output Power: 30kW

Output DC Voltage Range: 200-1000Vdc

Output DC Current: 0-100A



Overview:

Enhance your charging experience with our cutting-edge Floor-standing 30KW Dual-Port Charging Station. Featuring a 7-inch touchscreen display, this intelligent charging station offers a customizable language interface.



Designed to cater to your specific charging needs, our charging station is compatible with various standard charging cables, including national standard-GB/T, European standard-CCS2, American standard-CCS1, and Japanese standard-ChademMo. This versatility enables you to effortlessly pair the most suitable charging cable with your electric vehicle, ensuring efficient and reliable charging every time.



Perfect for both commercial and internal use within your company, our Floor-standing Charging Station delivers optimized charging capabilities. Whether you're looking to offer profitable charging services to the public or provide reliable charging solutions to your employees, this charging station is the ideal choice.



With an IP54 protection rating, our charging station boasts excellent resistance against dust and water intrusion, making it a durable and reliable choice for both indoor and outdoor applications.



Order now and enjoy efficient, convenient, and intelligent charging for your electric vehicle.
