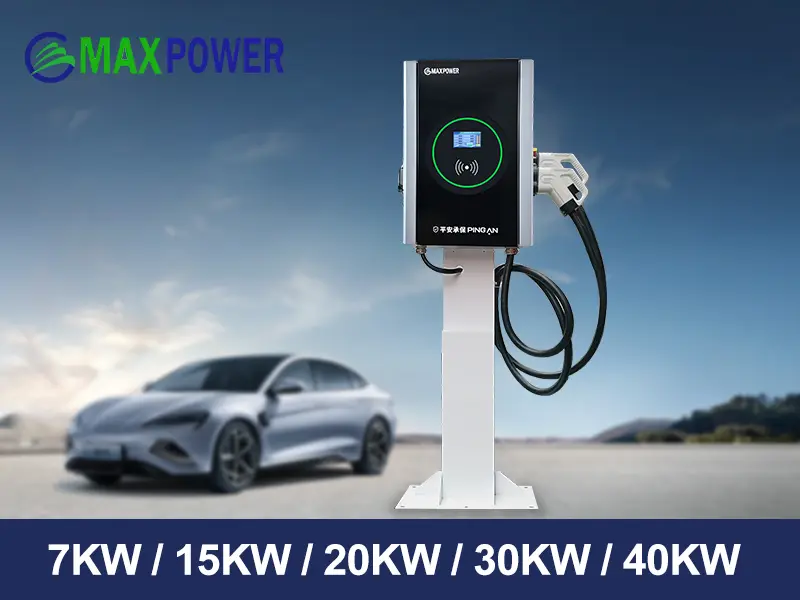

Specification of OC Series


7KW


Model

OC07750

INPUT

Voltage range

90-265Vac,220V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

32A

Auxiliary source

GB/T:12V 24V OPT   CCS CHAdeMO:12V

OUTPUT

Power

7KW

Voltage range

200-750Vdc

Output current

0-20A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃;25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%;25RH%(type);(non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

548*378*160mm

Packing size(mm)

Carton:790*610*380mm    Wooden box:790*610*470mm

Carton packing/weight

Carton weight 32kg, Wooden case weight 41kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

OTHER

The human-computer interaction

4.3 "color touch screen

Charging mode

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

Charger standard

GB/T:GB/T 18487 、GB/T 20234、GB/T 27930

CCS:EN61851、EN62196、ISO15118、DIN70121

CHAdeMO:CHAdeMO

Dedicated to changing the way the world uses energy,Max Power creates advanced electric vehicle charging and energy management systems with a focus on all aspects of EV charging from home installations to business solutions.

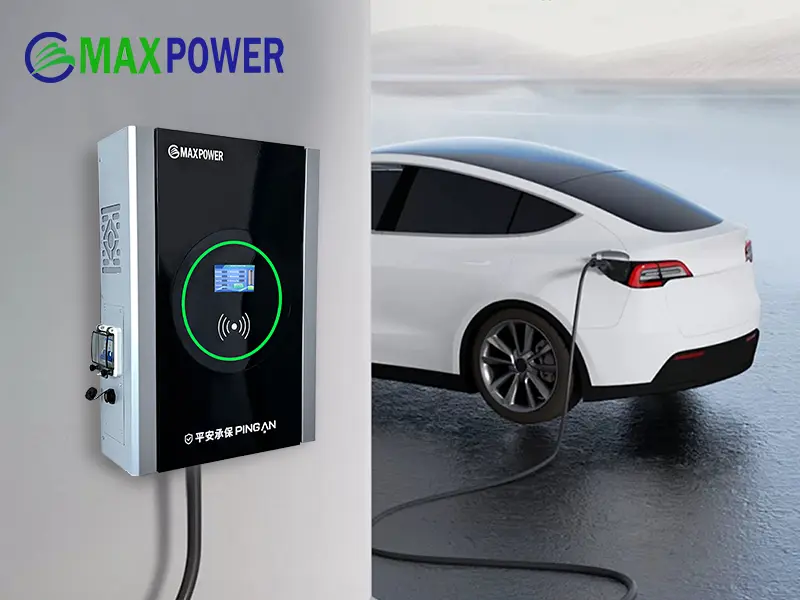

The new wall mounted OC15750 , the 15kw DC Fast  EV Chargers can be customized in a variety of co lours, including Black, White, Green,  Blue or Grey, as well as options to have a longer 7 metre tethered charging cable than the standard 5 metre. All Max Power EV Chargers are suitable for home and public use and can be controlled through OCPP 1.6 which boasts a range of smart functions.





15KW


Model

OC15750

INPUT

Voltage range

260-475Vac,380V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

30A

Auxiliary source

GB/T:12V 24V OPT   CCS CHAdeMO:12V

OUTPUT

Power

15KW

Voltage range

200-750Vdc

Output current

0-37.5A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃;25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%;25RH%(type);(non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

642*454*153mm

Packing size(mm)

Carton:790*610*380mm    Wooden box:790*610*470mm

Carton packing/weight

Carton weight 41kg, wooden case weight 59kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

The human-computer interaction

Charging mode

4.3 "color touch screen

Charger standard

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth


GB/T:GB/T 18487 、GB/T 20234、GB/T 27930

CCS:EN61851、EN62196、ISO15118、DIN70121

CHAdeMO:CHAdeMO



OC201K Max Power Wallbox charging station is wall-mounted charging point for electric vehicles. It is usually cheapest way to install charger in location. Max Power ev chargers refer to the physical system that provides electrical power to the vehicle plugged in by industry standard cable. This device brings together several components that make the whole system an integral EV charging system.



20KW


Model

OC20750

SC201K

INPUT

Voltage range

260-475Vac,380V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

32A

Auxiliary source

GB/T:12V 24V OPT   CCS CHAdeMO:12V

OUTPUT

Power

20KW

Voltage range

200-750Vdc

200-1000Vdc

Output current

0-50A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃;25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%;25RH%(type);(non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

642*454*153mm

Packing size(mm)

Carton:790*610*380mm    Wooden box:790*610*470mm

Carton packing/weight

Carton weight 45kg, wooden case weight 64kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

OTHER

The human-computer interaction

4.3 "color touch screen

Charging mode

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

Charger standard

GB/T:GB/T 18487 、GB/T 20234、GB/T 27930

CCS:EN61851、EN62196、ISO15118、DIN70121

CHAdeMO:CHAdeMO



OC301K is the best selling wall mounted dc charger. Designed specifically for home or public use, economical and packed full of technology and features.

It's also the best EV charging station for those with solar system, as it maximize the use of your solar to charge your car.

It contains wifi connectivity can send each programmed operation through OCPP1.6 online platform so that you can monitor and manage your charging.

30KW


Model

OC30750

OC301K

INPUT

Voltage range

260-475Vac,380V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

60A

Auxiliary source

GB/T:12V 24V OPT   CCS CHAdeMO:12V

OUTPUT

Power

30KW

Voltage range

200-750Vdc

200-1000Vdc

Output current

0-100A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃;25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%;25RH%(type);(non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

642*454*153mm

Packing size(mm)

Carton:790*610*380mm    Wooden box:790*610*470mm

Carton packing/weight

Carton weight 61kg, wooden case weight 69kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

OTHER

The human-computer interaction

4.3 "color touch screen

Charging mode

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

Charger standard

GB/T:GB/T 18487 、GB/T 20234、GB/T 27930

CCS:EN61851、EN62196、ISO15118、DIN70121

CHAdeMO:CHAdeMO



Max Power newly-launched 40kW Wallbox DC Quick EV Charger aims to improve convenience to EV drivers. The fast charger features an SAE combo charge connector.



Beside its fast charging features (the 24kWh battery of a Nissan Leaf can be recharged from 0% to 80% in approx. 40 minutes), the system offers a pluggable modular power system architecture for a meaningful reduction in installation and maintenance costs.



Max Power EV Charging Solutions feature RFID and mobile app  user access, which make these EV chargers ideal for various commercial applications like EV parking, fleet charging and also residential.



40KW


Model

OC40750

OC401K

INPUT

Voltage range

260-475Vac,380V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

67A

Auxiliary source

GB/T:12V 24V OPT   CCS CHAdeMO:12V

OUTPUT

Power

40KW

Voltage range

200-750Vdc

200-1000Vdc

Output current

0-134A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃;25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%;25RH%(type);(non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

667*475*204mm

Packing size(mm)

Carton:940*605*465    Wooden box:945*610*500

Carton packing/weight

Carton weight 70kg, wooden case weight 80kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

OTHER

The human-computer interaction

4.3 "color touch screen

Charging mode

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

Charger standard

GB/T:GB/T 18487 、GB/T 20234、GB/T 27930

CCS:EN61851、EN62196、ISO15118、DIN70121

CHAdeMO:CHAdeMO
