Common Electric Vehicle Fast Charging Station Equipment and Its Characteristics Analysis

Overview: Advancements in Electric Vehicle Fast Charging Stations

The rise of electric vehicles (EVs) has necessitated the development of fast charging stations to meet the growing demand for efficient and convenient charging solutions. This article provides a detailed analysis of common electric vehicle fast charging station equipment and its characteristics.

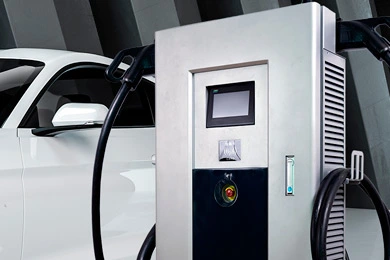

1. DC Fast Chargers

DC fast chargers, also known as Level 3 chargers, are widely adopted in electric vehicle fast charging stations. These chargers provide high power output, delivering a significant amount of electricity directly to the vehicle's battery, enabling rapid charging. DC fast chargers typically have the following characteristics:

• High Power Output: DC fast chargers are capable of delivering power levels up to 350 kW, allowing for quick charging times.

• Compatibility: They are compatible with most electric vehicle models, including those with higher battery capacities.

• Connector Types: Common connector types for DC fast chargers include CHAdeMO, CCS (Combined Charging System), and Tesla Supercharger.

• System Efficiency: DC fast chargers boast high charging efficiency, minimizing energy losses during the charging process.

2. Battery Swapping Systems

Battery swapping systems are another type of technology utilized in electric vehicle fast charging stations. Instead of waiting for the vehicle's battery to charge, a depleted battery is replaced with a fully charged one, enabling a quick turnaround. Key characteristics of battery swapping systems include:

• Rapid Exchange: Battery swapping systems can replace a depleted battery with a fully charged one in a matter of minutes, comparable to refueling a traditional vehicle.

• Standardization: To facilitate widespread adoption, battery swapping systems require standardization in battery design and size across different electric vehicle models.

• Infrastructure Investment: The implementation of battery swapping systems necessitates significant investment in infrastructure, including battery storage and handling facilities.

• Operational Challenges: Ensuring the availability of fully charged batteries, managing battery inventory, and addressing safety concerns pose operational challenges for battery swapping systems.




3. Overhead Pantograph Systems

Overhead pantograph systems, commonly employed in electric buses and some commercial vehicles, are now being adapted for electric vehicle fast charging stations. With this technology, charging equipment is mounted on an overhead structure, providing several distinct features:

• Rapid Charging: Overhead pantograph systems can deliver high power output, enabling efficient and quick charging of electric vehicles.

• Precise Alignment: Vehicles equipped with sensors can align precisely with the charging infrastructure, ensuring effective and reliable charging connections.

• Scalability: Overhead pantograph systems can serve multiple vehicles simultaneously by extending the charging infrastructure.

• Limitations: The implementation of overhead pantograph systems requires modifications to vehicles and installation of overhead infrastructure, limiting their adaptability to specific vehicle types and routes.

Conclusion

As the popularity and adoption of electric vehicles continue to grow, the development and deployment of common electric vehicle fast charging station equipment are critical. DC fast chargers, battery swapping systems, and overhead pantograph systems offer distinct characteristics, catering to different charging needs and requirements. Understanding these technologies is vital for the successful establishment of an efficient and robust EV charging infrastructure, promoting widespread EV adoption and minimizing charging time for users.
