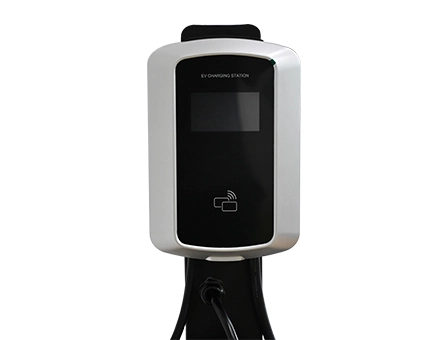

AC charger
Wall / Pillar AC EV Charger pile

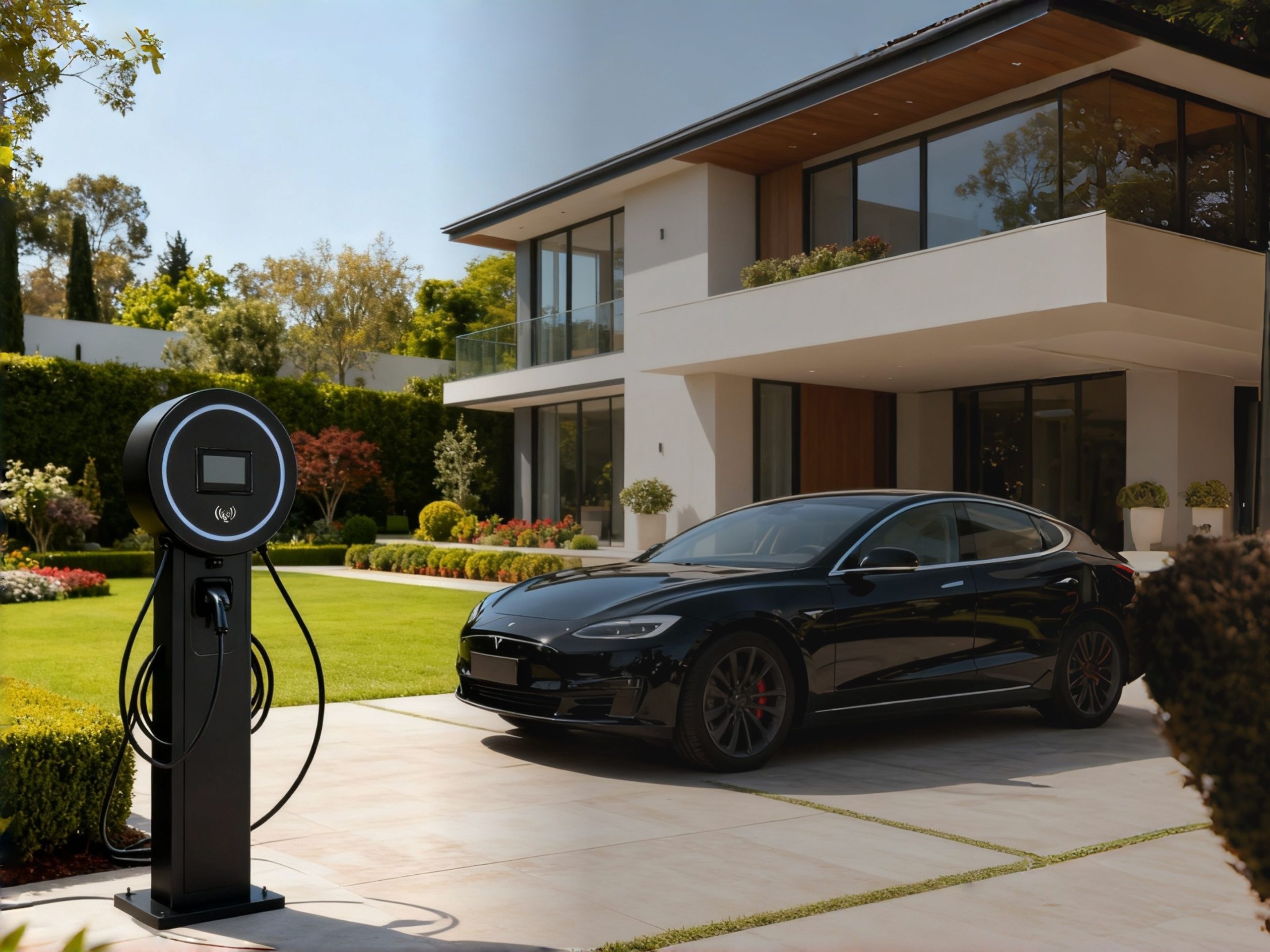

Wall & Floor-Standing AC EV Charging Pile
Flexible Power for Home & Business
Flexible Wall & Floor Mounting with German Design
The MAX POWER AC EV charging station offers versatile installation options as both a wall-mounted and floor-standing EV charger, making it an ideal home EV charging solution and a reliable commercial charging point. Designed with German design team, this AC EV charging pile combines style with high performance.
7-22KW Power & Global Compatibility for 1-2 EVs
Available in 7KW, 11KW, and 22KW power ratings, it supports a variety of configurations including single or double gun and single or double socket, enabling flexible use for one or two electric vehicles. The AC EV charger is compatible with global standards such as CHAdeMO (Japan), CCS1 (North America), CCS2 (Europe), and GB/T (China) and NACS(Tesla) connectors, offering broad vehicle support.
Robust Safety & All-Environment Charging Protection
Built with Type A+B leakage protection and IP54-rated enclosure, it delivers safe and stable performance across a wide temperature range. Whether installed at home, in offices, or public locations, this AC charging pile provides a secure, stylish, and scalable EV charging solution.
Main Features of Our
AC EV Charger
Smart Load Balancing & Multi-Connection Options
Enable efficient energy use with optional Dynamic Load Balancing. Stay connected via WiFi, Bluetooth, 4G, or LAN for a seamless and intelligent EV charging experience.
IP54 & Wide Temperature Range
Built to withstand harsh conditions, our chargers operate from -25°C to +50°C and come with IP54 protection. Dependable performance, rain or shine.
Advanced Leakage Protection
Type A+B leakage protection ensures accurate AC leakage detection for completely safe EV charging.
Single & Dual Port Outdoor EV Charger
Versatile outdoor EV charger with Single/Dual gun & Socket/Cable options. IP54 weatherproof for home, commercial, and fleet charging.
Wide Power Range & High Efficiency
This AC EV charging station offers 7kW, 11kW, and 22kW power outputs, delivering efficient charging for all electric vehicles at home or commercially.
Easy installation for any location
Our AC EV charger offers simple wall or pillar mounting for a flexible, professional setup at home or work.
| Product Parameters | |||
|---|---|---|---|
| Product Model | ACO0732 | ACO1116 | ACO2232 |
| Rating | 7KW | 11KW | 22KW |
| Output voltage | AC220V±20% | AC380V | |
| Input voltage | AC220V | AC380V | |
| Input Current | 32A | 16A | 32A |
| Output Current | 32A | 16A | 32A |
| User interface | 4.3 inch color touchMonitor, with swipe card, support wechat, paypal payment | ||
| Sizes(mm) | Without gun mount: 350*150*350 single gun mount: 350*150*370 double gun mount: 350*150*450 |
||
| Installation | Wall/pillar | ||
| IP Rating | IP54 | ||
| Charging mode | Plug and play/OCPP/RFID | ||
| Charge Gun Cable Length | 4M | 5M | 5M |
| Weights | 5KG | 6KG | 8KG |
| NetWorking protocol | OCPP1.6 | ||
| Operating temperature | -25℃ ~ +50℃(DeRating above 50℃, with heater for very cold areas) | ||
| Height above sea level | 2000M | ||
| NetWorking Methods | WIFI; bluetooth; 4G; LAN | ||
| Smart charging | Dynamic Load Balancing(Optional) | ||
| Leakage protection | Type A (A+6) | ||
| Ground detection | Pen fault(For the UK market) | ||
| Applicable standards | GB/T20234/EN62196/EN61851-1 JEVSG 105/CHAdeMO | ||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | ||
Please leave to us and we will be in touch within 24hours.
Frequently Asked Questions
What is Dynamic Load Balancing (DLB) in a smart EV charger
DLB is an intelligent system in our smart EV charger that automatically adjusts power distribution to prevent circuit overloads, making it essential for a safe and efficient home EV charger setup.
Is this AC EV charger suitable for outdoor installation?
Yes. Built with a robust, corrosion-resistant casing and high IP54 weatherproof rating, this unit is specifically designed to function reliably as an outdoor EV charger.
What makes this model a smart EV charger?
Our charger’s support for OCPP 1.6J, remote monitoring, and connectivity options (4G/Wi-Fi/Ethernet) classify it as a smart EV charger, allowing for advanced management and control.
What is a Type 2 connector, and is it supported?
The Type 2 connector is the standard for AC charging in Europe. Our AC charging station supports it and other major standards like CCS2, ensuring broad compatibility.
What are the key benefits of a dual-gun home EV charger?
A dual-gun home EV charger like the MAX POWER station allows you to charge two vehicles simultaneously, eliminating the need for a second charging unit and maximizing convenience for households with multiple EVs.
What materials ensure the durability of this outdoor EV charger?
Our outdoor EV charger units utilize high-quality, corrosion-resistant Carbon Steel and high-purity copper, chosen for their robustness and longevity, achieving IP54 and IK10 ratings.
What is the typical lifespan of this home EV charger?
Thanks to robust construction, our home EV charger units are engineered for a long service life, typically 10-15 years under normal operating conditions.
