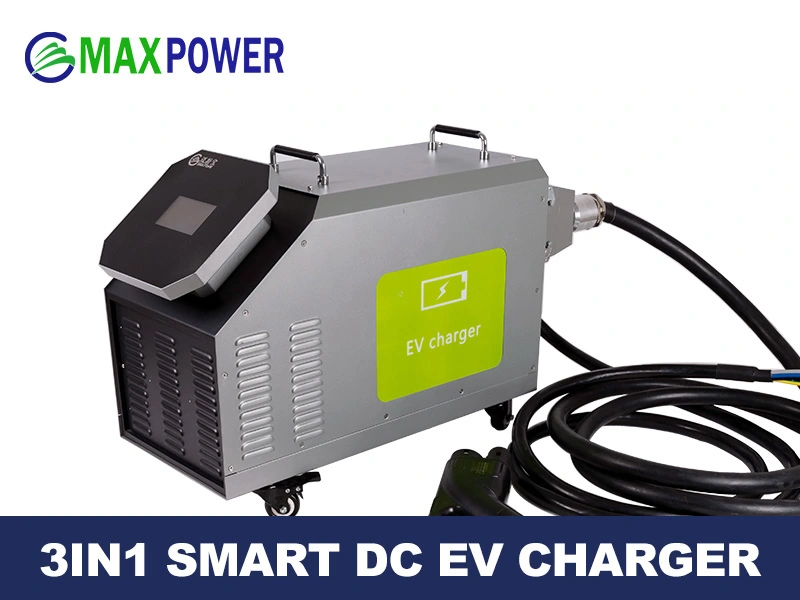

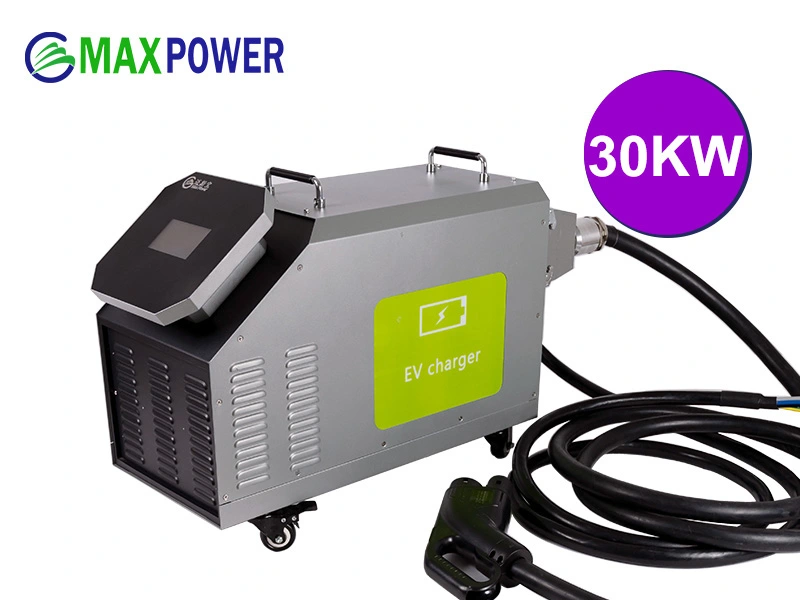

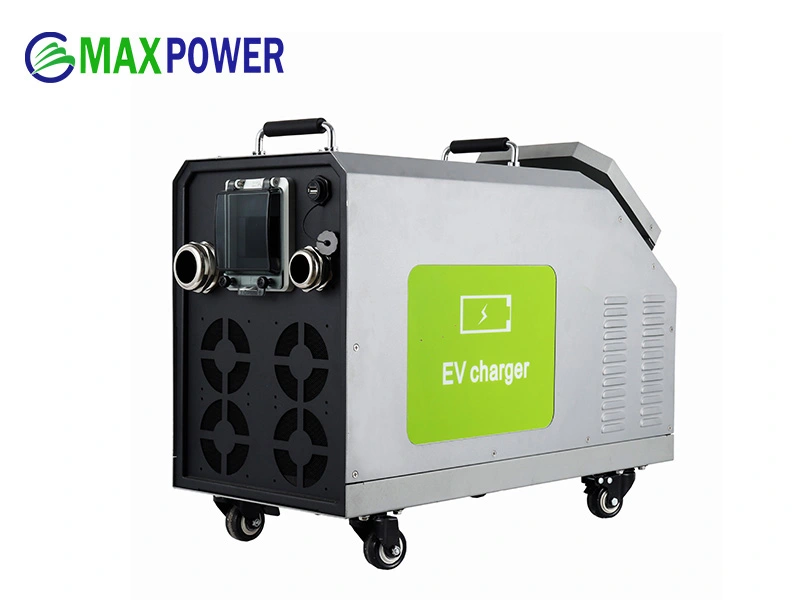

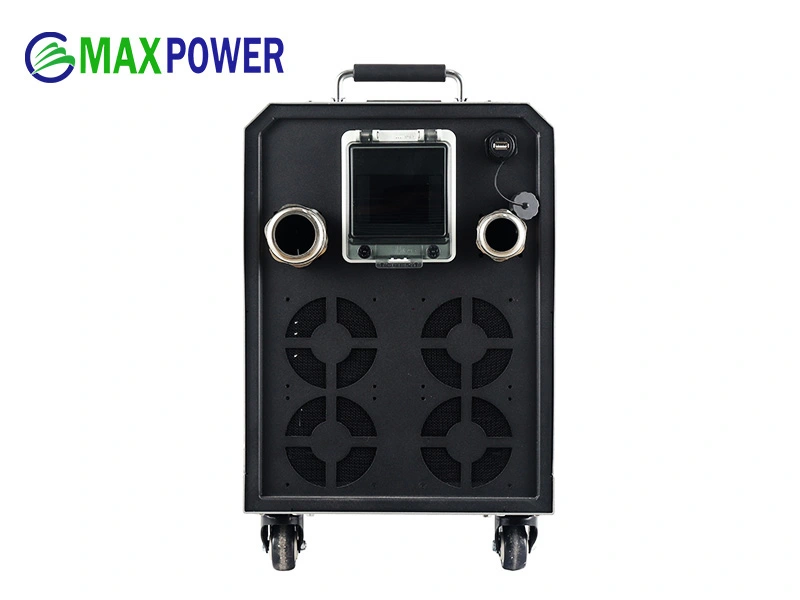

Mobile 30kW DC EV Fast Charger

Name: Mobile 30kW DC EV Fast Charger
Brand: Guangzhou Max Power New Energy Technology Co., Ltd.

Model no.: XC30750 / XC301K

Features: Swappable CCS, CHAdeMo, GB/T and NACS cables for flexible multi-protocol charging; 4.3" colored touch screen display; dual portable handle; robust caster wheels with fixed-position brake; fixed time charging available during off-peak electrical hours.

XC Series 7-40kwGEAJ_Specification (neutral)

General Specifications

Charging Standard	CCS1 / CCS2 / CHAdeMO / GBT
Start Mode	plug and charge / RFID reader / power-on password
Networking Protocol	OCPP1.6J
Network Cellular	LAN/WIFI/4G modem
Charging Standard	GB/T 20234、GB/T 27930; EN61851、EN62196、ISO15118、DIN70121; CHAdeMO
Temperature Range	-20~+50℃
Machine Dimensions	L86W55H58cm
Input Voltage Range	260-475Vac
Frequency	50/60Hz
Input Current Range	45A
Input Cable Length	5M
Output Power	30kW
Output DC Voltage Range	200-750Vdc / 200-1000Vdc
Output DC Current	50A/100A
Gun Cable Length	3M

Overview

DC mobile EV chargers provide convenient and fast electric vehicle charging capabilities in a portable, movable package. They allow EV fleets and businesses to charge vehicles wherever needed, without installing fixed charging infrastructure. DC mobile chargers are compact, lightweight units that connect directly to the EV for high-power direct current fast charging.

There are many advantages to using DC mobile EV chargers. They can charge EVs quickly at higher power levels compared to AC Level 2 charging. DC mobile chargers are plug-and-charge for easy operation. Their compact size and portable design enables flexible charging in parking lots, at events, or wherever fast charging access is needed. Units can be moved and redeployed as charging demands shift.
