DC AC Integrated Fast EV Charger
3-in-1 AC DC Fast EV Charging station with 400kW Liquid Cooled DC & 22kW AC Integrated Charger
Fully OCPP 1.6J compliant, IP54-rated outdoor charging solution designed for high-voltage heavy-duty EVs and commercial fleets.
7 Inch LCD Touch Screen
Global Compatibility
Remote Management
Wide Voltage Output
DC & AC Integrated Fast EV Charging Stations Are Ldeal For

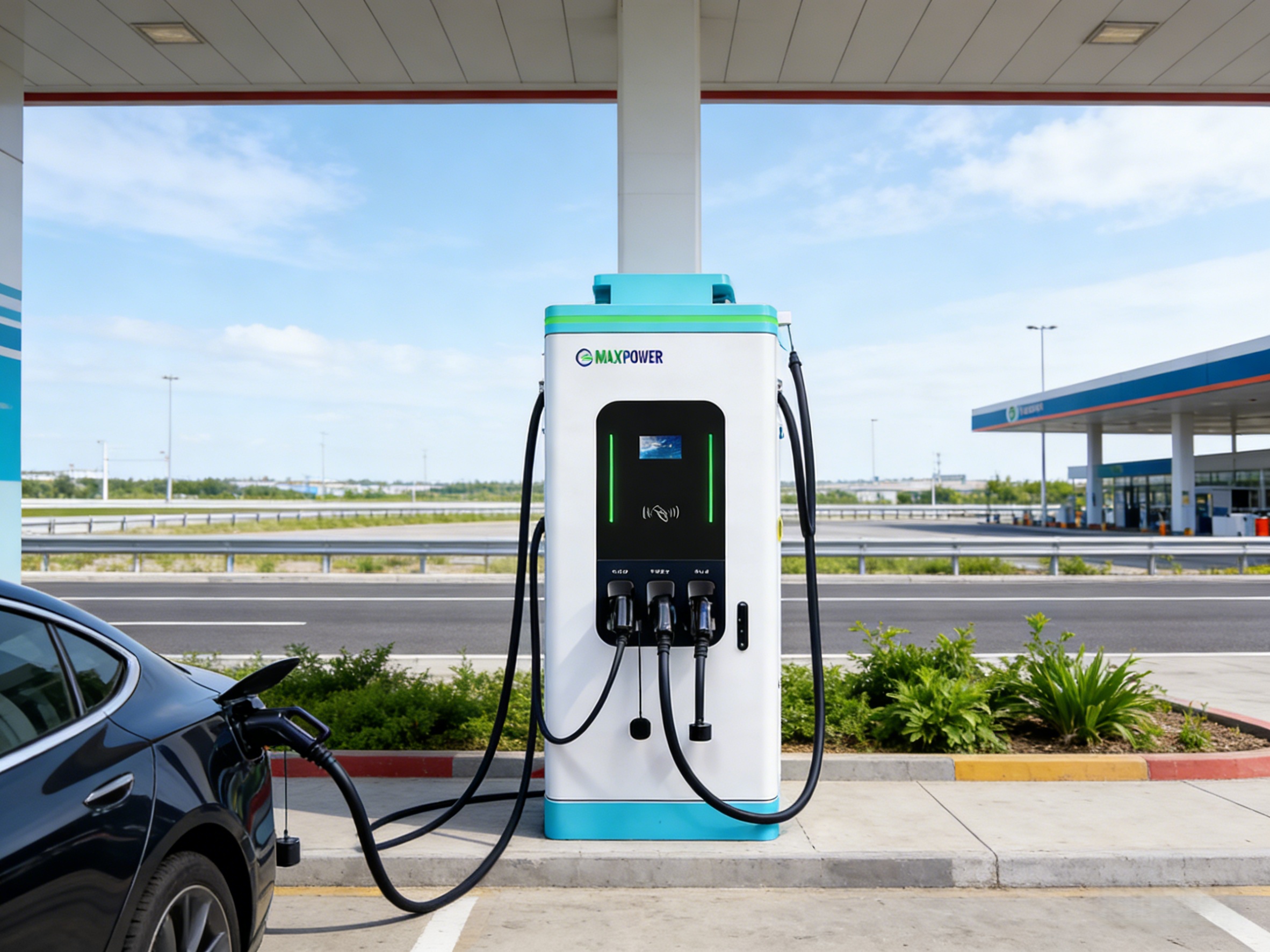

Highway Service Stations
Provide "Ultra-Fast" charging for long-distance travelers.

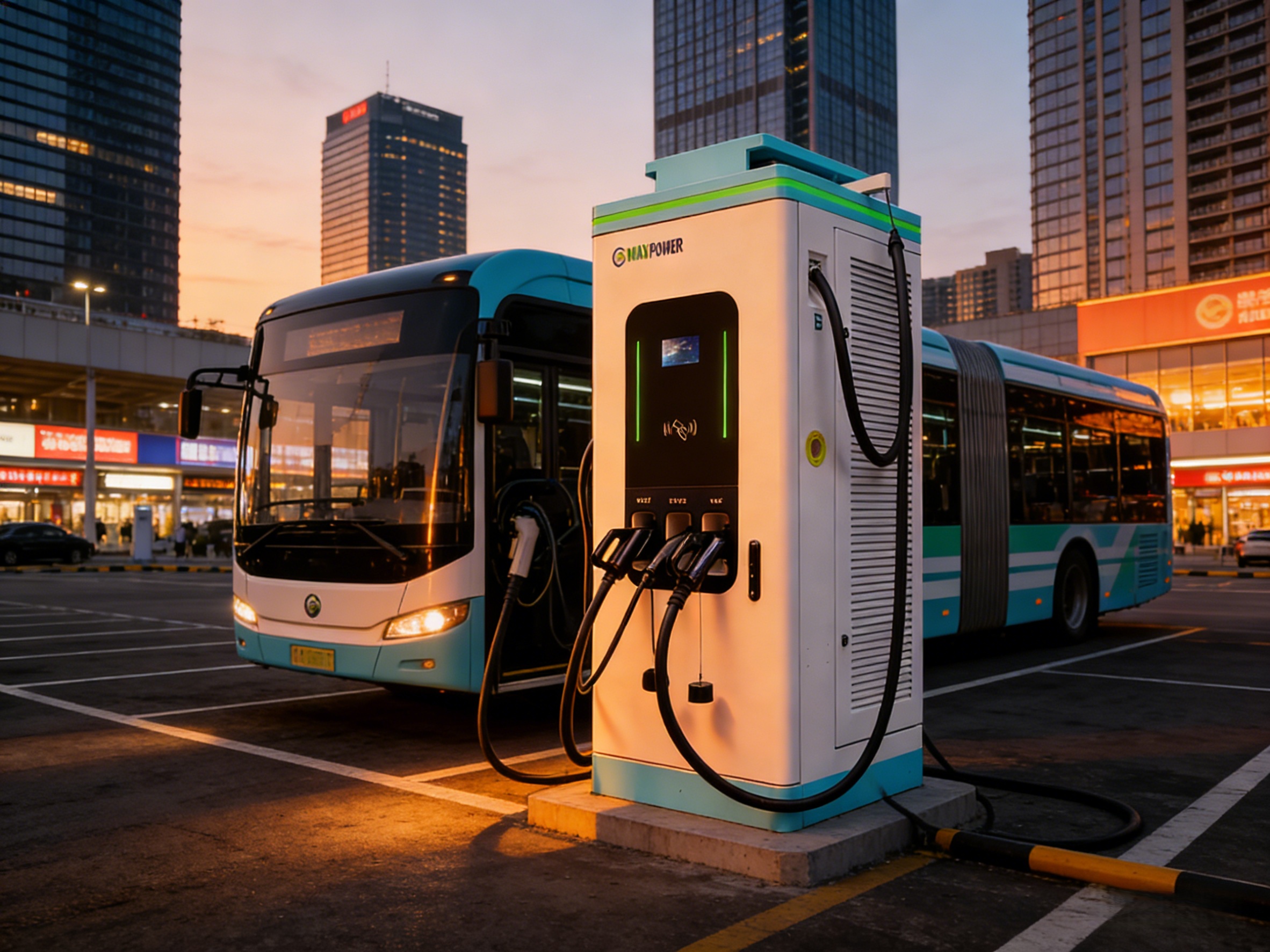

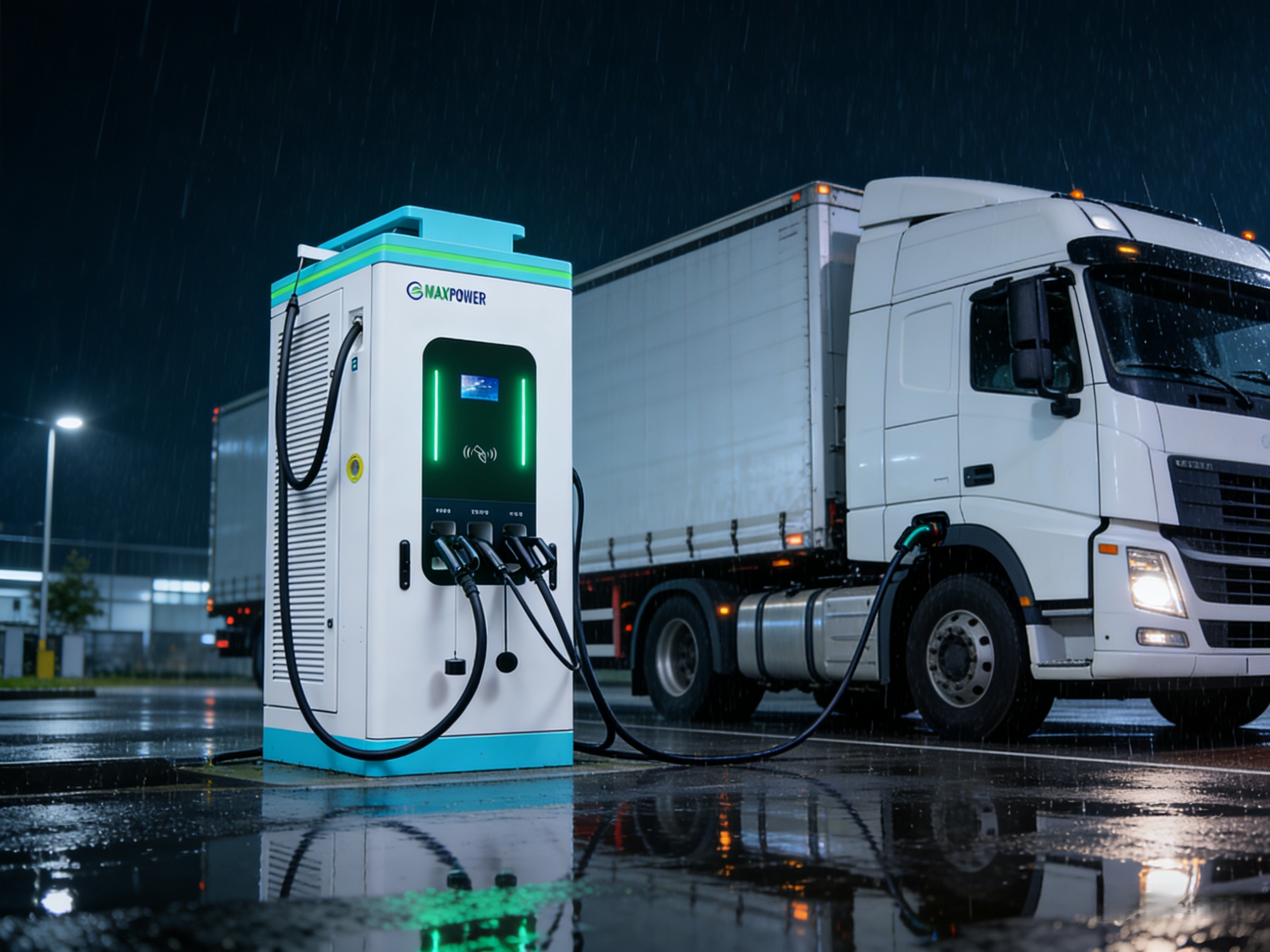

Commercial Fleet Depots
Charge electric buses and logistics trucks overnight or during shift changes.

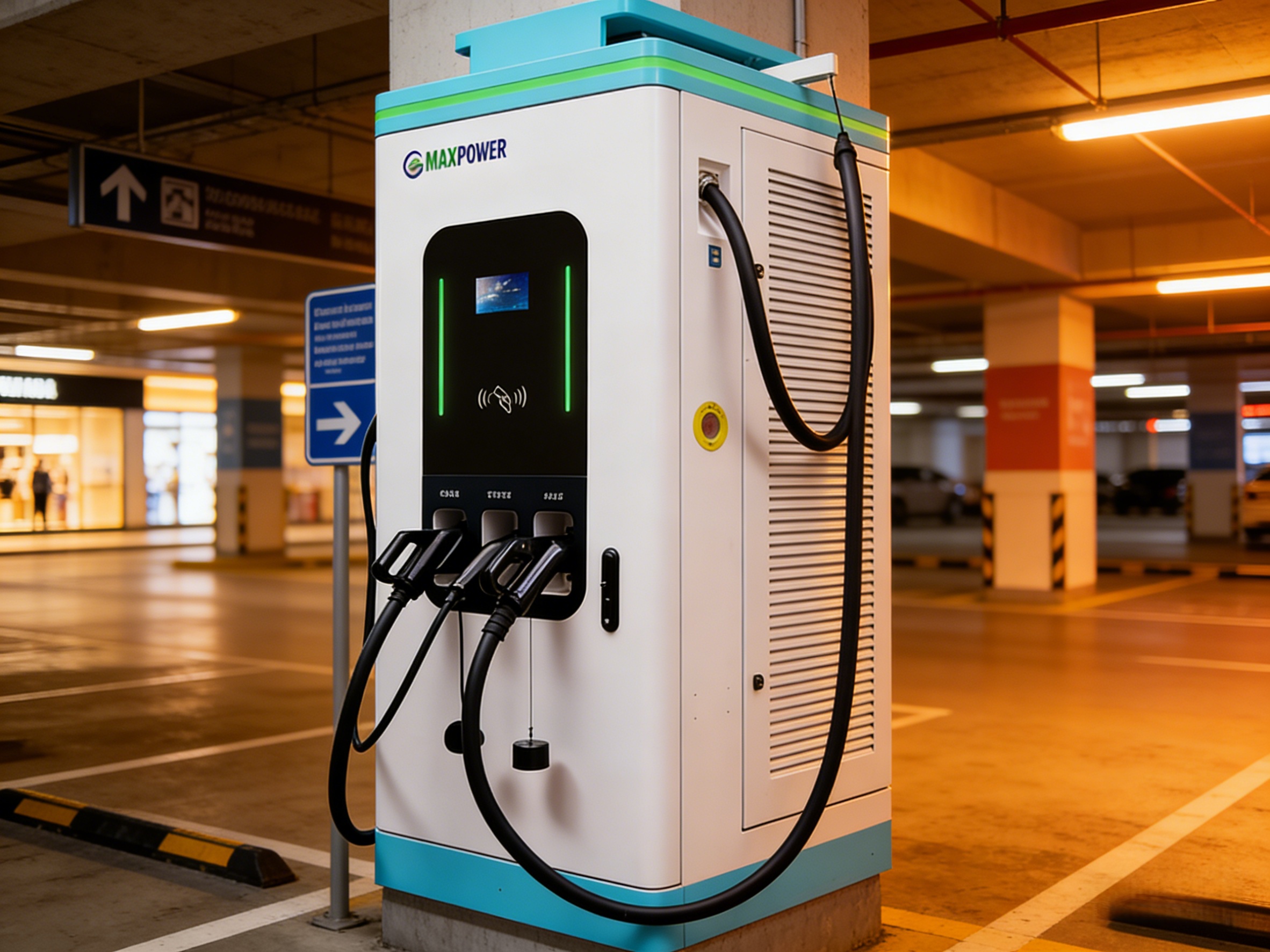

Urban Charging Hubs
High-density charging for shopping malls and business districts.
Public Infrastructure
Multi-standard support makes it the perfect government-tender solution.

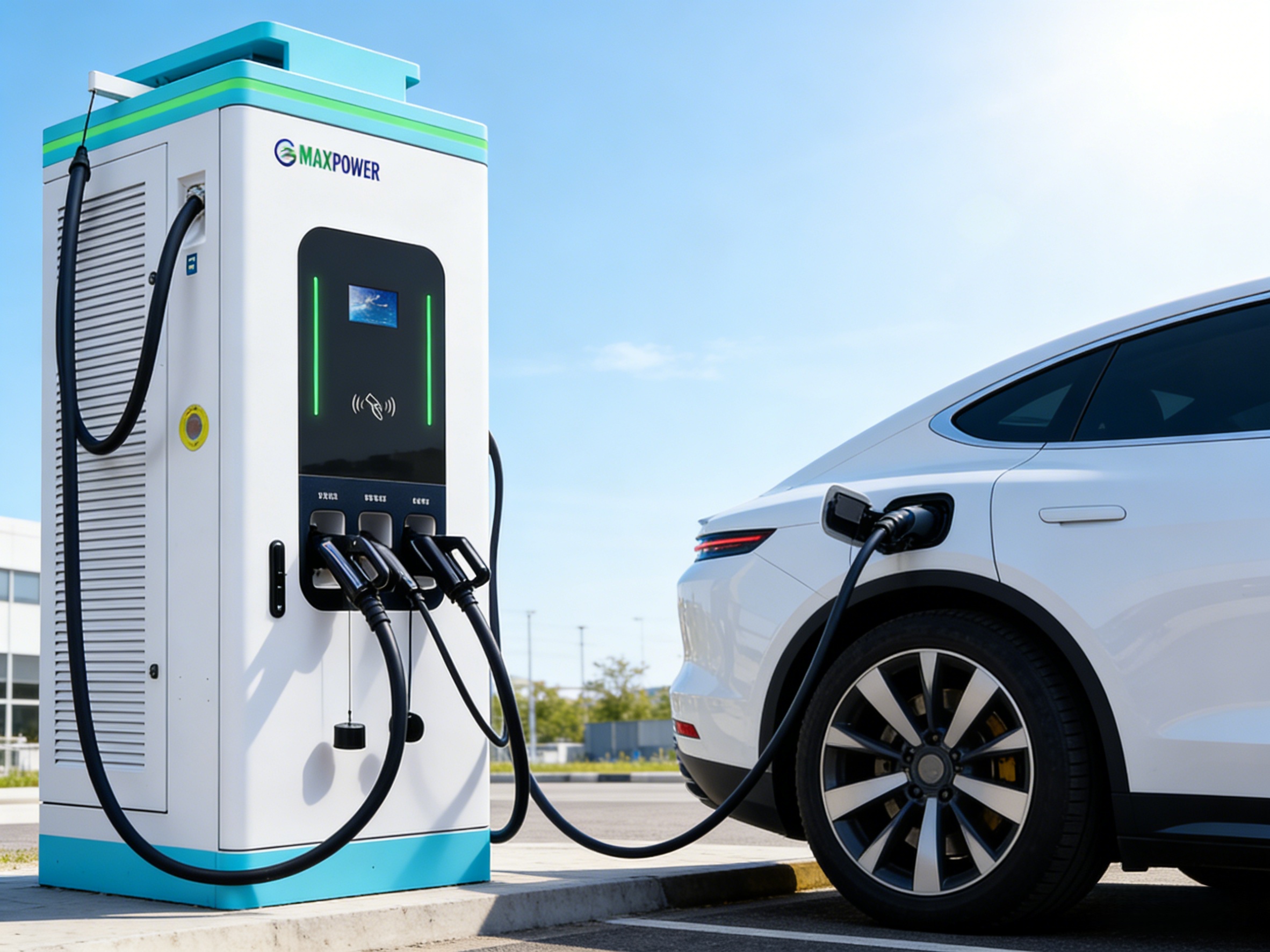

High-Performance 3-in-1 Integrated Charging
Unmatched versatility in a single station. The LIC Series supports a Triple-Gun configuration, featuring two high-power DC guns and one optional AC gun (7kW/11kW/22kW). This “All-in-One” design allows for simultaneous ultra-fast DC charging and destination AC charging, catering to hybrid fleets and maximizing station utilization.
Advanced Liquid-Cooling for Ultra-Fast 500A Output
Engineered for extreme performance, our liquid-cooled system features a massive 3500W cooling capacity. This technology enables the DC guns to maintain a continuous 500A high-current output without overheating, significantly outperforming standard 300A air-cooled guns. Even at ambient temperatures up to 50°C, the system ensures stable, full-speed charging.
Future-Proof 1000V High-Voltage Architecture
Stay ahead of the curve with a wide output voltage range of 200V to 1000Vdc. This wide-band design is fully compatible with the next generation of 800V high-voltage EV platforms, ensuring your investment remains relevant as battery technology evolves.
Global Standards & Seamless Connectivity
A truly universal solution supporting CCS1, CCS2, GB/T, NACS and CHAdeMO standards for DC charging, and Type 1, Type 2, or GB/T for AC. Fully compliant with OCPP 1.6J, it offers flexible network integration via 4G, Wi-Fi, or Ethernet, enabling remote monitoring, billing, and management.
Industrial-Grade Reliability & Smart Protection
Built for the toughest environments with an IP54 protection rating and a robust 660KG frame. The LIC Series features an intelligent 7-inch touchscreen and a comprehensive safety suite, including insulation monitoring, emergency stop, leakage protection, and lightning protection, ensuring 24/7 safe operation in public or industrial settings.
Please leave to us and we will be in touch within 24hours.
| Product Parameters | ||
|---|---|---|
| Product Model | LIC400221K | |
| Output power | DC | 400KW |
| AC | 22KW | |
| Output voltage | DC | 200-1000V |
| AC | 380V±20% | |
| Input Voltage | AC380V±20% | |
| Input Current | 0-712A | |
| Output Current | DC | 0~300A |
| AC | 0~32A | |
| Frequency | 47-63HZ | |
| Number of Charging Guns | 2DC connector+1AC connector | |
| Charging way | Charge Alternately/Evenly | |
| Charging mode | OCPP/RFID/Password/Plug and Play | |
| Human-computer interaction | 7-inch color touch screen+IC contactless card reader | |
| Network connection | Standard:CAN/485/Ethernet Optional:GPRS/4G | |
| Sizes(mm) | 2063×801×850 mm | |
| Weight | 420kg | |
| Operating temperature | -25℃~+50℃(Derated above 50℃,can be equipped with a heater in the cold area.) | |
| Elevation level | 2000M | |
| IP Rating | IP54 | |
| Operating humidity | 5%-90%RH,non-condensing | |
| Charge Gun Cable Length | 5M (Cable length can be customized) | |
| Applicable standards | GB/T20234/EN62196/EN61851-1,JEVSG 105/CHAdeMO | |
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | |
