Ultra-Fast DC Charger

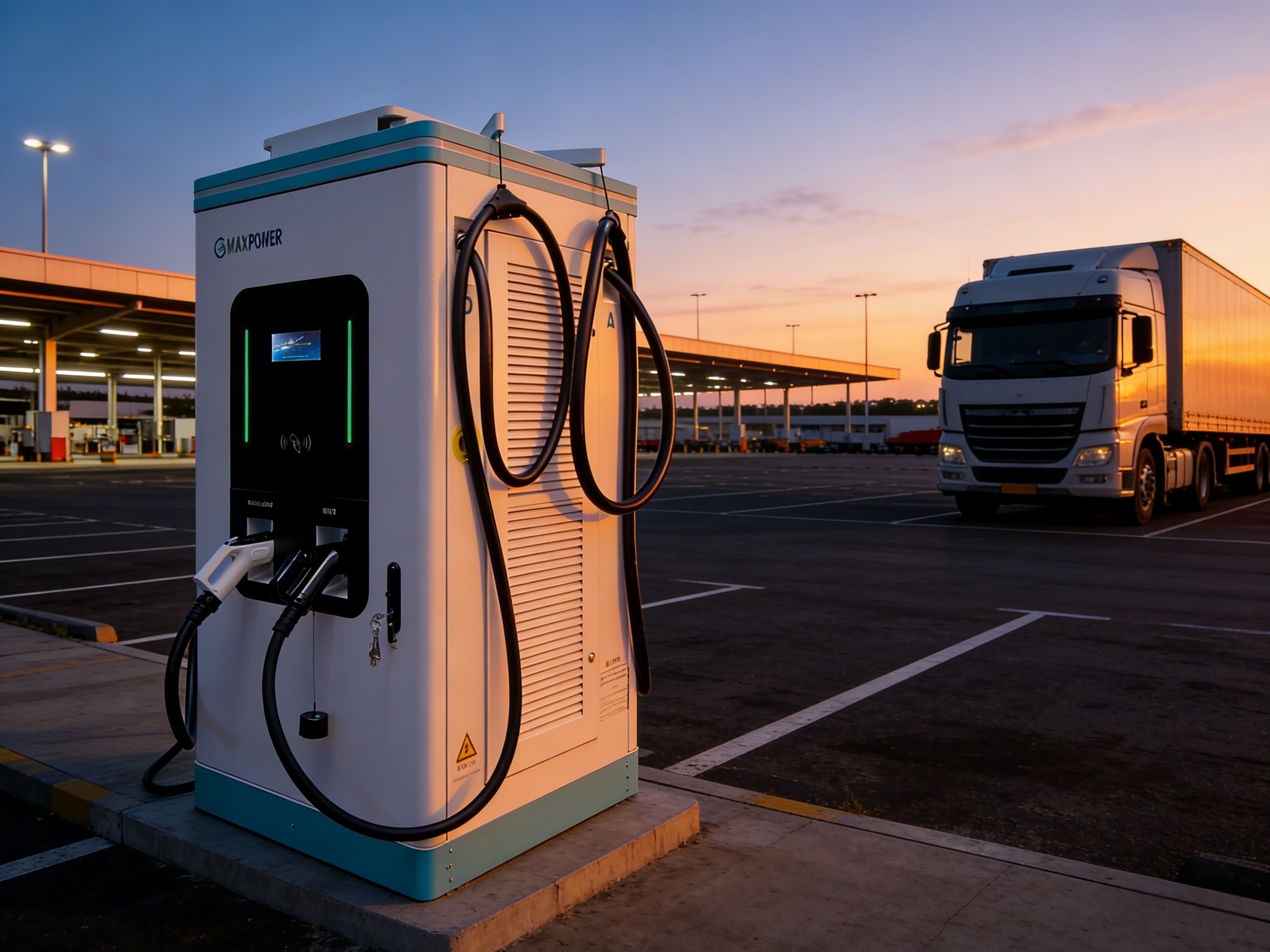

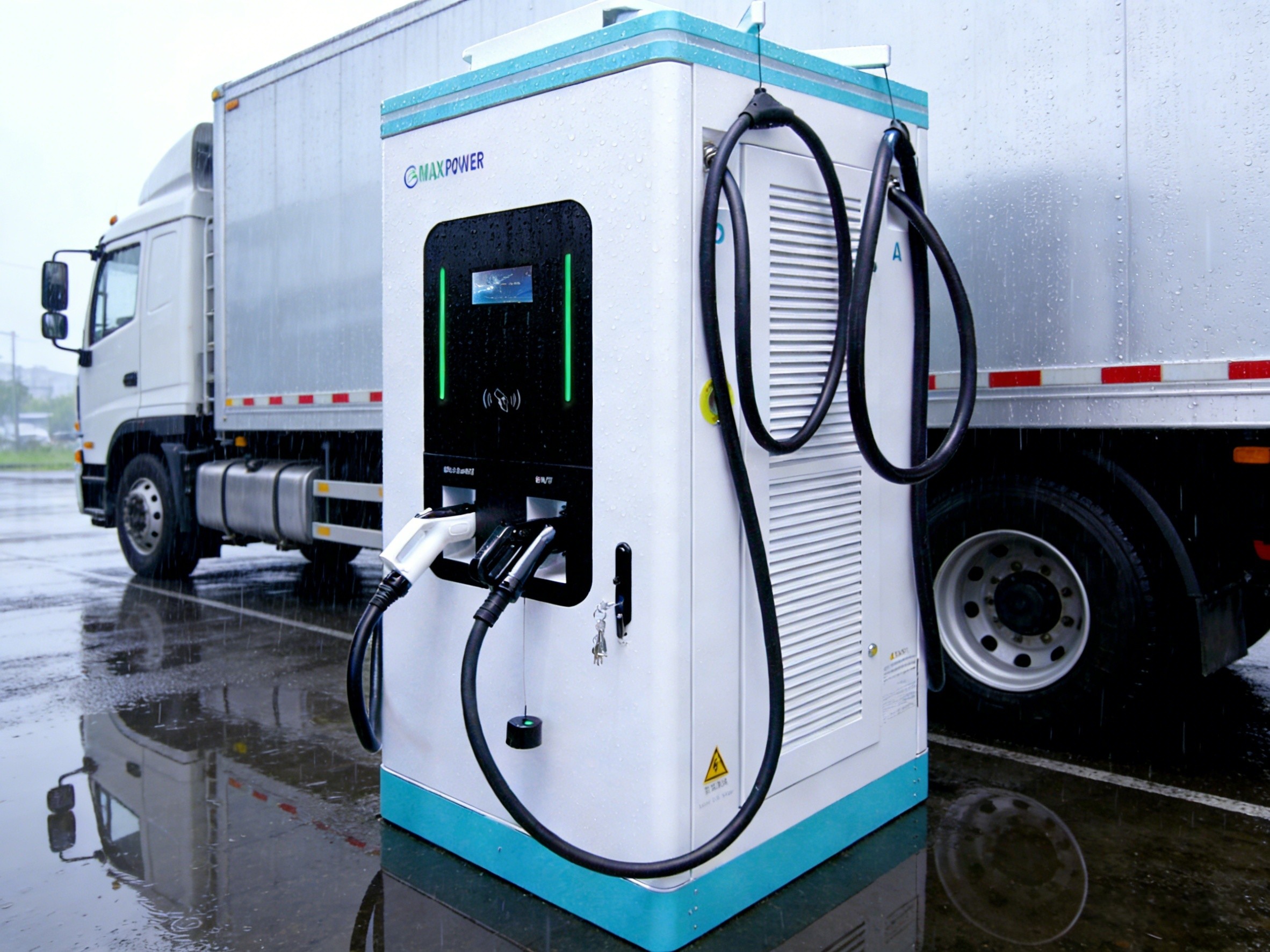

480kW Ultra-Fast EV Charging StationHigh-Power Solution for Heavy-Duty Trucks & Fleets
Revolutionize your commercial fleet charging with our 480kW Ultra-Fast DC Charging Station. Engineered for heavy-duty applications like electric trucks and buses, this modular system offers unmatched flexibility—from liquid-cooled super charging to four-gun simultaneous charging. Fully compliant with global standards (CCS2, CCS1, GBT, CHAdeMO) and powered by OCPP 1.6J/2.0 for smart remote management.
7 Inch LCD Touch Screen
Global Compatibility
Remote Management
Wide Voltage Output
Are Ideal For GC Series 480kW Ultra-Fast EV Charger Station

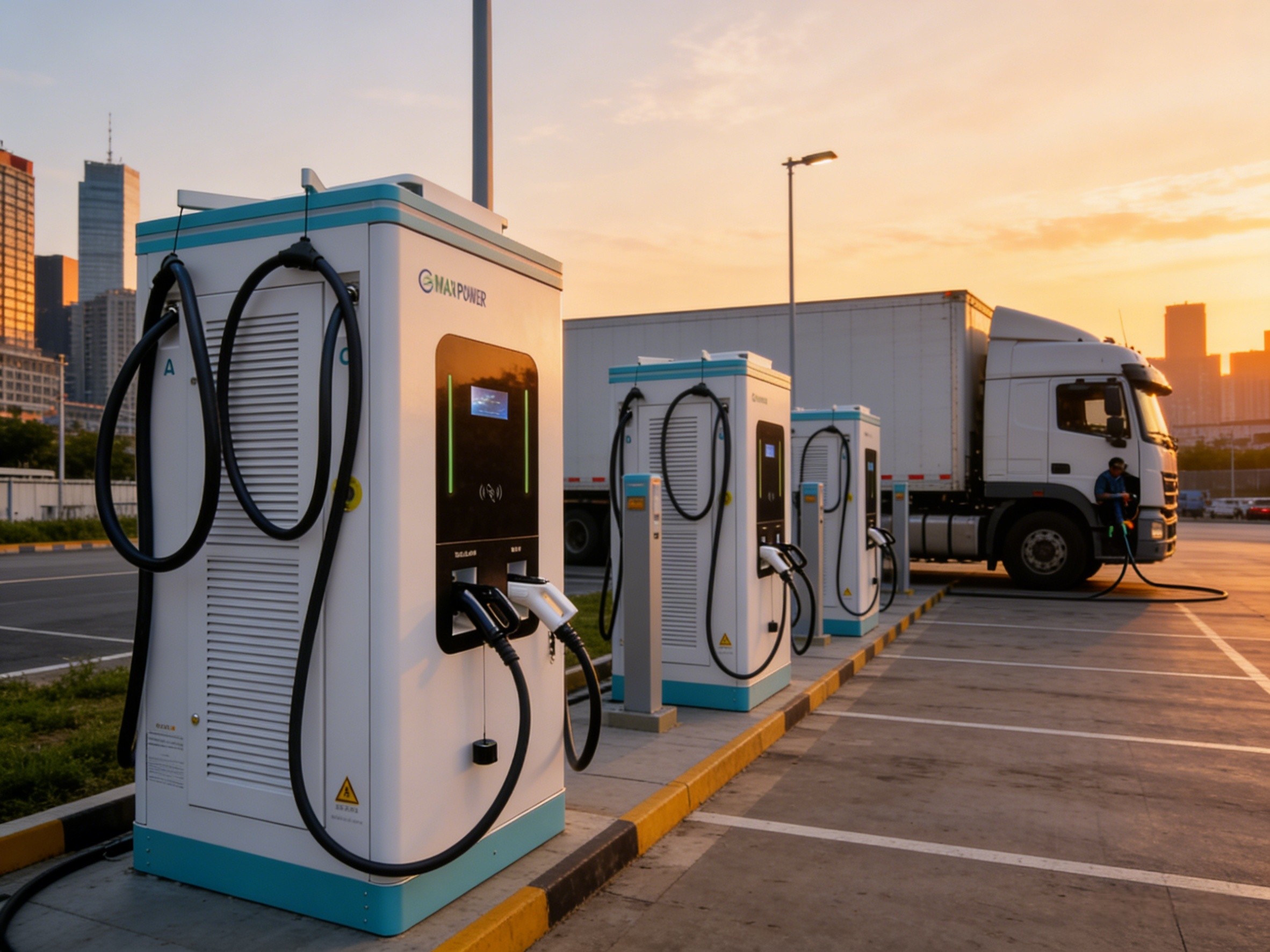

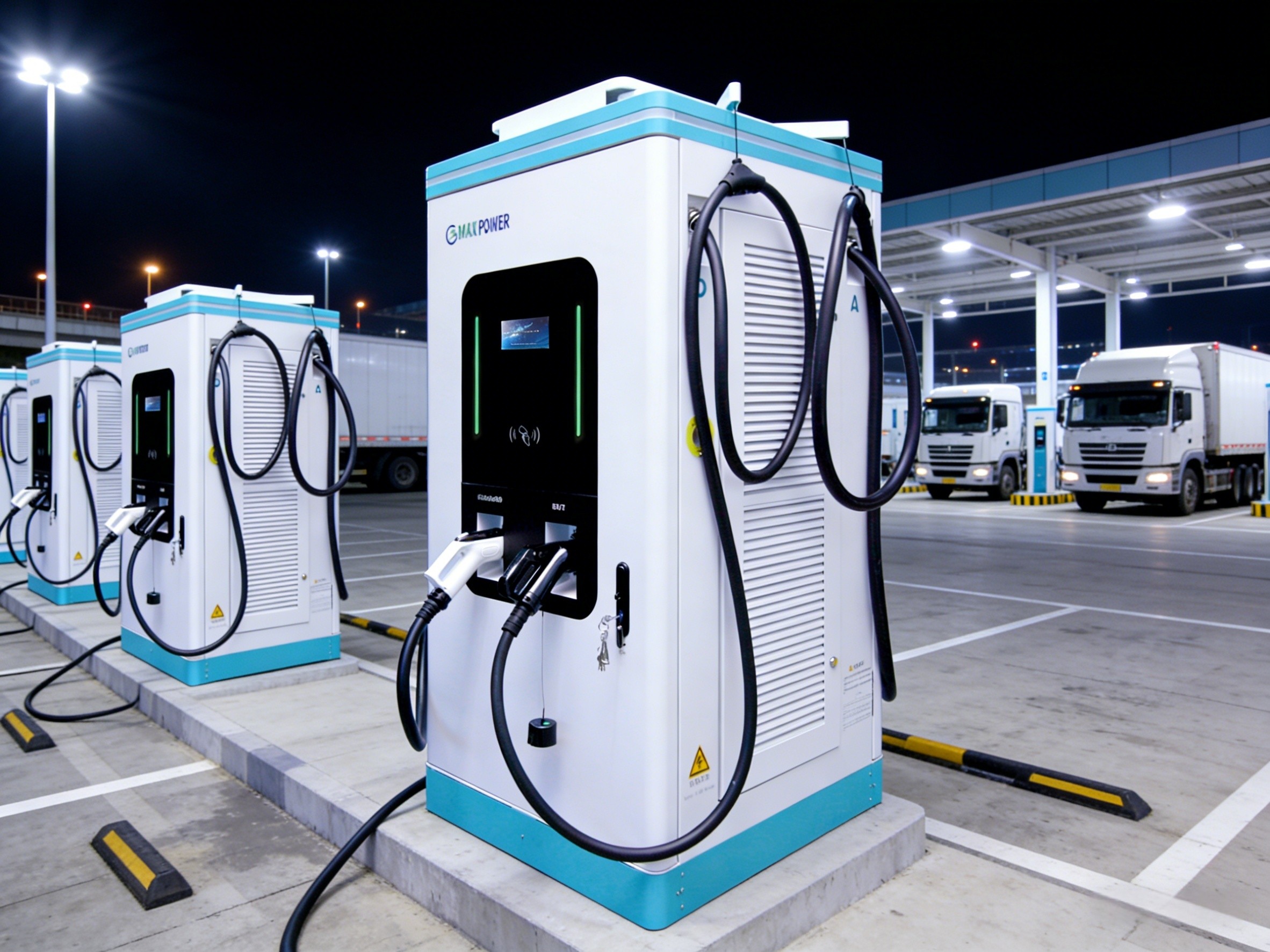

Heavy-Duty Logistics
Fast-track charging for electric semi-trucks and delivery fleets.
Public Transit Hubs
Efficient overnight or "top-up" charging for electric bus fleets.
Mining & Construction
Reliable power for heavy machinery in demanding environments.
Highway Service Stations
High-turnover charging for long-haul EV transport.
High-Performance Power Distribution
- Massive 480kW Output: Specifically designed for large-scale logistics, heavy-duty trucks, and high-turnover charging hubs.
- Flexible Dispatch: Support for Single-Gun 240kW ultra-fast charging or Four-Gun simultaneous charging for maximum fleet efficiency.
- Modular Scalability: Optimized power allocation to ensure every vehicle gets the maximum available current.
Global Compatibility & Customization
- Universal Standards: Available in European (CCS2), American (CCS1/NACS), Chinese (GB/T), and Japanese (CHAdeMO) standards.
- Custom Cable Lengths: Tailor your charging layout with customizable cable lengths to fit any site requirement.
- Cooling Options: Choose between Air-Cooled cables for standard high performance or Liquid-Cooled cables for sustained ultra-high current output.
Industrial-Grade Safety & Reliability
- IP54 Protection: Rugged, weather-resistant enclosure built for harsh outdoor environments.
- Comprehensive Protection Suite: Built-in Emergency Stop, Short-Circuit Protection, Leakage Protection, and Lightning/Surge Protection.
- Smart Thermal Management: Advanced sensors monitor temperatures in real-time to prevent overheating.
Smart Operation
- OCPP Support: Seamless integration with any charging management platform via OCPP 1.6J or 2.0.
- Remote Management: Monitor status, troubleshoot, and update firmware (OTA) remotely to minimize downtime.
- Customizable UI: Multi-language support and branded interfaces tailored to your local market.
Please leave to us and we will be in touch within 24hours.
| Product Parameters | ||
|---|---|---|
| Product Model | GC4801K | |
| Input Characteristics | Voltage range | AC380V±20% |
| Frequency | 47-63HZ | |
| Power factor | ≥ 0.95 | |
| Input Current | 0-800A | |
| Output Characteristics | Output power | 480KW |
| Auxiliary power | GB/T：Compatible 12V 24V , CCS、CHAdeMO：12V | |
| Voltage range | 200-1000Vdc | |
| Output Current | 0-300A(Maximum Current per gun) | |
| Charging way | Single gun full power 240kw charging / four gun ABCD equalizing charging | |
| Number of Charging Guns | 1-4 guns are available for selection (CCS1,CCS2,GB/T,NACS,CHAdeMO in any combination） | |
| Charge Gun Cable | 5 meters standard (optional) | |
| Operating requirement | Temperature range | Work: -20~50℃ ; Storage: -40~85℃ Intelligent deRating for temperature exceeding 50℃. |
| Humidity range | 5~90RH%; no condensation | |
| Height above sea level | <2000M | |
| work environment | Indoor/Outdoor | |
| Dimensions and Protection | Machine size | 935x 1053 x 2009mm (excluding gun holder, charging gun and other protruding parts) |
| Package size | 1100x 1250 x 2200mm | |
| Weight | Approx. 400KG | |
| IP Rating | IP54 | |
| Charging mode | Plug and Play/ RFID / Password / OCPP / VIN | |
| Protective function | Emergency stop protection; Output Over-voltage protection; Over-temperature protection; Short circuit protection; Leakage protection; Lightning protection; |
|
| Human-computer interaction | 7 -inch color touch screen | |
| Screen language | Chinese, English (other languages can be customized) | |
| NetWorking Methods | 4G/WIFI/Ethernet | |
| Installation Methods | Floor Mount | |
| Charging Standards | GB/T：GB/T 18487 、GB/T 20234、GB/T 27930； | |
| CCS：EN61851、EN62196、ISO15118、DIN70121 ； | ||
| CHAdeMO：CHAdeMO2.0 | ||
